Kompakte, robuste und stabil verbundene Steckverbinder mit hoher Übertragungsgeschwindigkeit sind für hochpräzise Kameras, GPS- und andere Navigationssysteme sowie verschiedene Sensoren, die in Drohnen verwendet werden, unerlässlich.
KEL produziert Steckverbinder für den fortschrittlichen Drohnenmarkt. Neben einer breiten Palette von kompakten Steckverbindern verfügen wir über langjährige Erfahrung in der Herstellung von ultrakompakten Steckverbindern. Diese ermöglichen Hochgeschwindigkeits-Übertragung und gewährleisten stabile Verbindungen für Navigationssysteme für Autos.
Kameras für Drohnen
Kleine Kameras für Drohnen müssen in der Lage sein, hochauflösende Bilder zu liefern und gleichzeitig das Fluggerät kleiner zu machen.
Die Mikro-Koaxialkabel von KEL sind hochflexibel und können Hochgeschwindigkeits-Übertragungseigenschaften unterstützen, während das Steckerteil ultrakompakt bleibt, um eine hohe Bildqualität zu erreichen.
GPS-Module, Navigationssysteme, Sensoren
Mit jeder neuen Generation werden Drohnen immer kleiner und integrieren gleichzeitig mehr Sensoren und Instrumente, was dazu führt, dass ihre Leiterplatten immer dichter mit Komponenten bestückt sind.
Die Mikro-Koaxialkabel-Steckverbinder von KEL verwenden haardünne Kabel, die frei im kleinen Gehäuse einer Drohne verlegt werden können. Wenn unsere Floating-Steckverbinder verwendet werden, absorbiert der toleranzausgleichende Mechanismus Montagetoleranzen und widersteht Stößen wie beispielsweise einem Fall.
Standardprodukte
-
FAS-Serie
1.5 mm pitch drawer connector
“FAS series” is a 1.5mm pitch drawer connector. Like the FA series, this product meets the requirements for drawer connectors: prevention of pin buckling, ease of mating adjustment, stress reduction during mating, and high connection reliability.
A sufficient floating mechanism (maximum ±1.4mm in XY directions) is provided to reduce stress after mating. In addition, in order to take advantage of this, the amount of induction is increased to ±3mm in the XY direction. Furthermore, we have created a structure in which the contacts do not come into contact when being guided, but only come into contact after the connectors are straight, which buckling prevention. The contact concept uses a two-point contact with a contact sandwich, which has a proven track record in our GF series battery connectors. Highly reliable connection has been achieved by setting effective mating length to 3.4mm. The cable is a cable crimp type that is compatible with AWG #24 to 28 discrete cables. With a wide variety number of contacts ranging from a minimum of 4 to a maximum of 40 pins, this product can meet a wide range of needs. The standard product has a mating/unmating durability of 2,000 times, and multiple mating/unmating types are also available, so please contact us for details. (When mating FAS01/FAS12: 7,000 times. When mating FAS01/FAS11: 5,000 times.) The FAS series is smaller than the FA series from a 2.5mm pitch to a 1.5mm pitch, and one of its major features is that it saves more than 30% of the printed circuit board space it occupies. We also have a system that can meet the demands of workers in terms of workability and usability, such as products that support hot swap and removal, and cables that can be connected using common crimping jigs. -

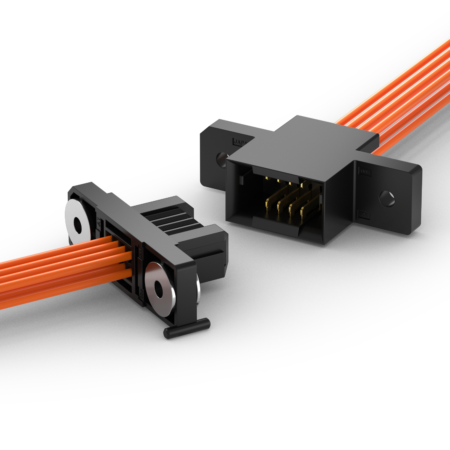

FA-Serie
2.5 mm pitch drawer connector
The FA Series is a 2.5 mm pitch drawer connector. Drawer connectors are suitable for mating in places that are not visible. It provides the high connection reliability required for drawer connectors, including buckling prevention, facilitating mating adjustment, and reducing stress during mating. The compatible cables are AWG#22/24/26/28.
-

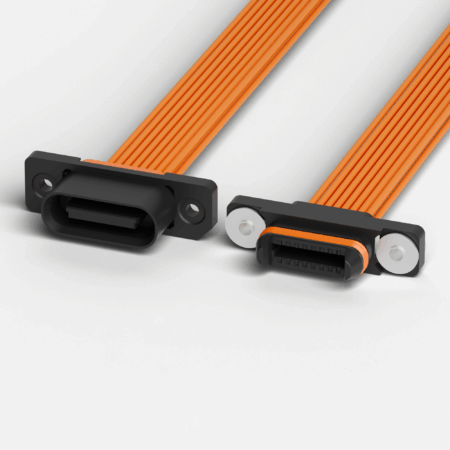

FWSA Series
2.0mm Pitch IP67 Waterproof Drawer Connector
The FWSA Series is a 2.0 mm pitch, IP67-compliant waterproof drawer connector. A drawer mechanism holds a stable connection where misalignment during mating is likely: the guide absorbs mating errors of ±1.5 mm in the XY directions, and the screw fastening on the cable-side connector adjusts a further ±1.0 mm. Compatible cable is AWG#26.
-
Serie 8602E
0.635 mm Pitch Connector / Eject-lock type
The 8602E Series is a 0.635 mm pitch board-to-board connector with a lock mechanism. The lock mechanism eliminates the need for fixing with screws, and the product assumes applications in memory modules and other applications for connection with small printed circuit boards.
