Waterproof Connectors

IP67 2.0 mm pitch, small-size, waterproof connector

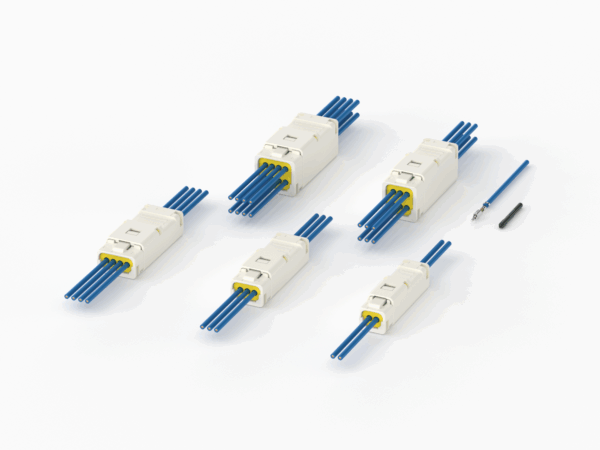

The FWS Series is a IP67-compliant compact waterproof connector with a 2.0 mm pitch. It is the industry’s smallest compact and low-profile waterproof connector with a 2.0 mm pitch.

Hauptmerkmale

• Four-point contact by hermaphroditic terminals ensures stable contact at all times

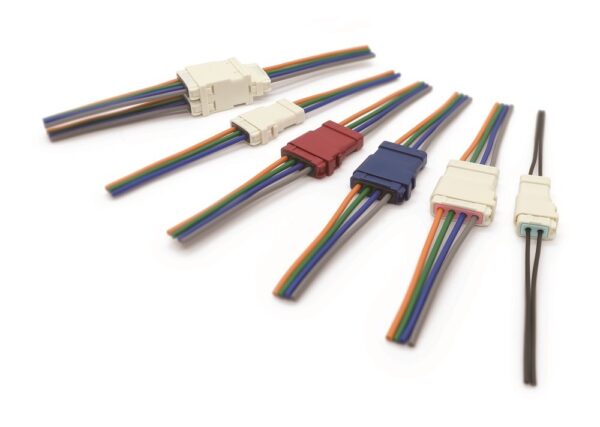

• FWSP0A/1A housing is available in three colors: Natural (White), Red, and Black
• Cable seals are available in two colors, Blue and Orange, depending on the outer diameter of the cable coating
• Built-in cable seal and seal ring

2.0mm Pitch IP67 Waterproof Drawer Connector

The FWSA Series is a 2.0 mm pitch, IP67-compliant waterproof drawer connector. A drawer mechanism holds a stable connection where misalignment during mating is likely: the guide absorbs mating errors of ±1.5 mm in the XY directions, and the screw fastening on the cable-side connector adjusts a further ±1.0 mm. Compatible cable is AWG#26.

Hauptmerkmale

• IP67 protection rating, the waterproof and dustproof performance standard for electronic equipment.
• Suited to outdoor use, with a drawer mechanism that maintains stable connections even where misalignment during mating is likely.
• Built-in cable seal and seal ring.
• Guide mechanism which absorbs mating errors of ±1.5 mm in the XY directions.
• The screw fastening mechanism on the cable-side connector allows adjustment of up to ±1.0 mm in the XY directions.
• Highly reliable design with an effective mating length of 2.0 mm.
• Twin-leaf pinching 2-point contact structure prevents contact buckling, giving stable contact force and improved reliability.
