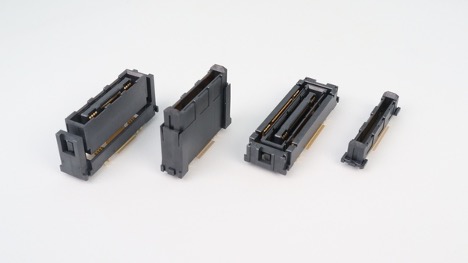

KEL Corporation is currently developing the JG Series, a high-speed floating connector designed to support PCIe 5.0 transmission standards.
Product Overview
- Floating connector with a 0.5 mm signal terminal pitch
- Designed to handle PCIe 5.0–equivalent transmission speeds
- Signal terminals: 40 to 240 pins
- Power terminals: up to 8 pins (10A per contact)
- Available with or without shell
- Stacked mating configuration
- Stack height options: 10 to 35 mm
- Floating tolerance:
- ±1.0 mm in X/Y directions (for 10–20 mm stack height)
- ±1.2 mm in X/Y directions (for 20–35 mm stack height)
- Operating temperature: -40°C to +125°C (including heat rise during use)
Spezifikationen
- Insulator: Glass-filled LCP, UL94V-0, black
- Contacts: Copper alloy
- Plating: Nickel base with gold finish (contact area and tail)
- Current rating: 0.3A (signal)
- Contact resistance: ≤100 mΩ
- Dielectric withstand voltage: AC 200V, 1 min
- Insulation resistance: ≥100 MΩ (DC 250V)
- Durability: 100 mating cycles
Anwendungen
- Automotive systems (domain controllers, ECUs, etc.)
Note: This product is still in development. Specifications, design, and the series name may change without notice.
