Board to Board

Gleicht Toleranzen und Fehlausrichtungen während des Steckvorgangs aus, um Defekte wie Risse in der Leiterplatte zu verhindern. Unsere schmalen Rastermaße und die Vielzahl von Kontakten ermöglichen die Miniaturisierung von Geräten.

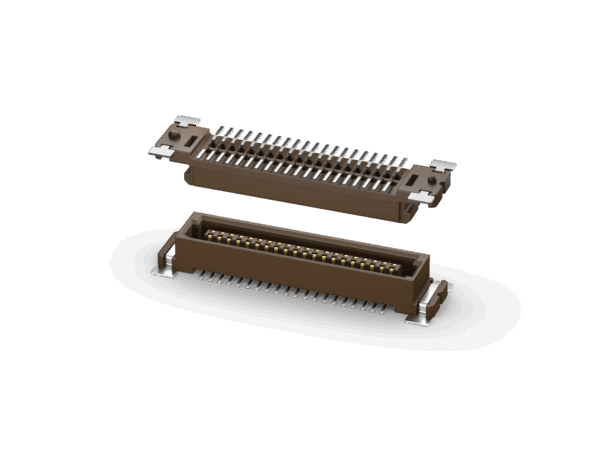

8900MS Series
1.27 mm pitch connector/Low-profile type

The 8900MS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector for low profile profile SMT. It can also be mated with the DIP type of the 8900 series.

Hauptmerkmale
- Insulator structure that protects from three directions prevents contact deformation
- Surface contact enables low insertion/removal force and the highly reliable design secures contact force and trailing capability
- PPS is used for the insulator material to ensure heat resistance
- Equipped with a retention clip to reduce stress on the lead

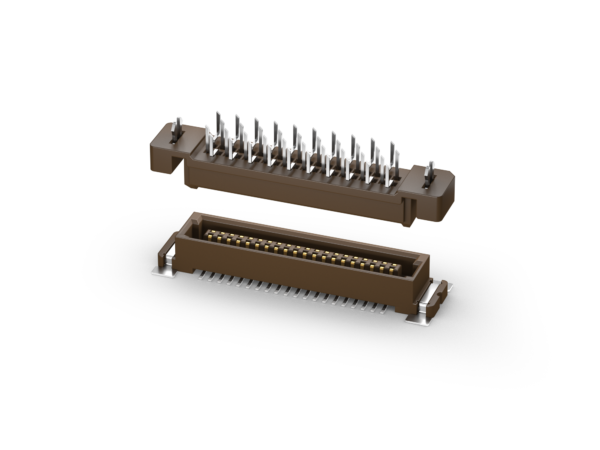

8900 Series
1.27 mm pitch connector/Low-profile type

The 8900 Series is a 1.27 mm pitch, low-profile, board-to-board connector. The straight type has five variations of height ranging from 7 mm to 12 mm. It is also available with or without a metal hook.

Hauptmerkmale
- Insulator structure that protects from three directions prevents contact deformation
- Surface contact enables low insertion/removal force and the highly reliable design secures contact force and trailing capability
- Reliable mating is possible with a audible “click”
- Available in two types, with and without flanges

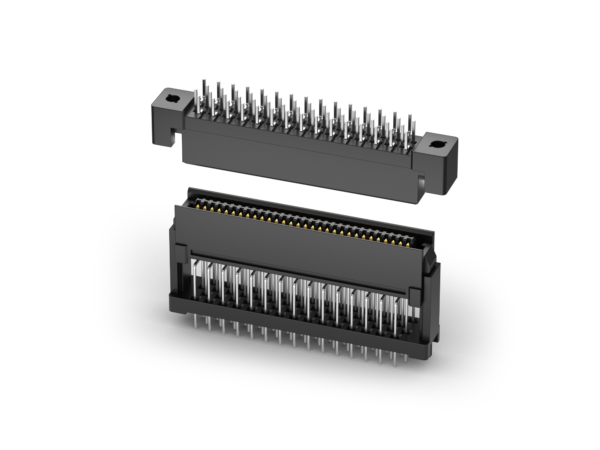

8832E-FS Series
1.27 mm pitch 2-piece connector/Flexible stack type

The 8903N-FS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector with a choice of stack heights. It can be mated with the plug side of the 8900 series.

Hauptmerkmale
- Insulator structure that protects from three directions prevents contact deformation
- Surface contact enables low insertion/removal force and the highly reliable design secures contact force and trailing capability
- Reliable mating is possible with a audible “click”
- Mating partner can be selected from the 8913/8930E/8931E series

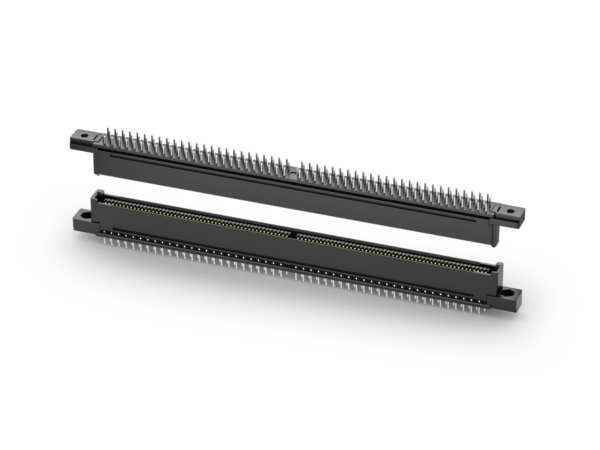

8806 / 8807 Series
1.27mm pitch connector/ multi pin type

The 8806/8807 series is a multi pin pin type 1.27mm pitch printed circuit board-to-printed circuit board connector offering straight/right angle configuration.

Hauptmerkmale
- Completely independent two-point contact maintains stable contact at all times
- Surface contact achieves a low insertion and withdrawal force, contributing to better contact durability
- Smooth mating is possible with the guide mechanism
- Connection method: Stacked/horizontal/vertical mating

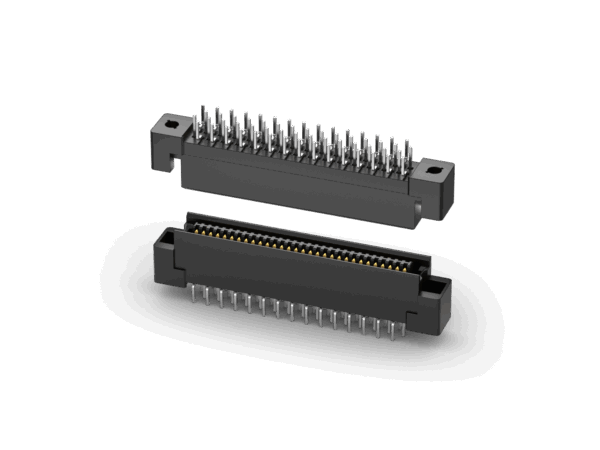

8800 Series
1.27 mm pitch connector

The 8800 Series is a 1.27 mm pitch board-to-board connector. It is available in straight and right-angle types, with or without fixing clips, and also with power contacts.

Hauptmerkmale
- Completely independent two-point contact maintains stable contact at all times
- Surface contact achieves a low insertion and withdrawal force, contributing to better contact durability
- Plug and receptacle have same contact shapes, enabling significant cost reduction through shared use of molds and reduced material costs
- Connection method: Stacked/horizontal/vertical mating
GC / GD Series
5mm pitch/3mm pitch 1 piece battery connector

The GC/GD series is a connector for lithium-ion compatible batteries. It is used for connection when exchanging the IC signal of the battery pack of small devices such as PCs and handy terminals between the main unit and the battery pack.

Hauptmerkmale
- Stroke displacement quantity is ensured despite its compact design. (GC: 2.5mm, GD: 2.3mm)
- Contact structure with self-cleaning mechanism
- Highly reliable spring design that ensures contact stability
- Gold-gold-plated finish for improved contact reliability

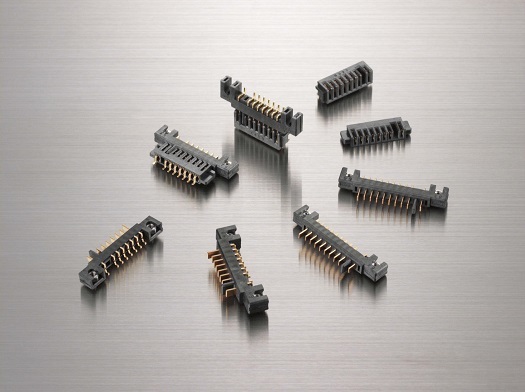

GF series
2mm pitch 2 piece battery connector

The GF series is a 2mm pitch lithium polymer battery connector allowing a significant reduction in profile compared to conventional products.

Hauptmerkmale
- Low profile battery connector. (Mounting height 2.6mm: GF31 series)
- Guaranteed 5,000 mating/unmating life
- Corresponds to hot swap
- Connection method: horizontal mating, stacked mating

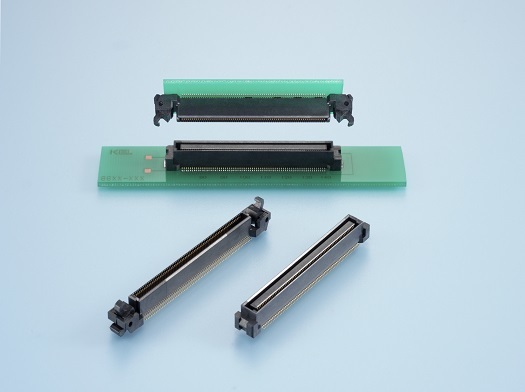

8602E Series
0.635 mm Pitch Connector / Eject-lock type

The 8602E Series is a 0.635 mm pitch board-to-board connector with a lock mechanism. The lock mechanism eliminates the need for fixing with screws, and the product assumes applications in memory modules and other applications for connection with small printed circuit boards.

Hauptmerkmale
- Reliable design with an effective mating length of 1.4mm
- Unique eject-lock mechanism that enables one-handed insertion and removal to improve work efficiency
- Coplanarity: 0.1 mm
- Stack height: 8 mm

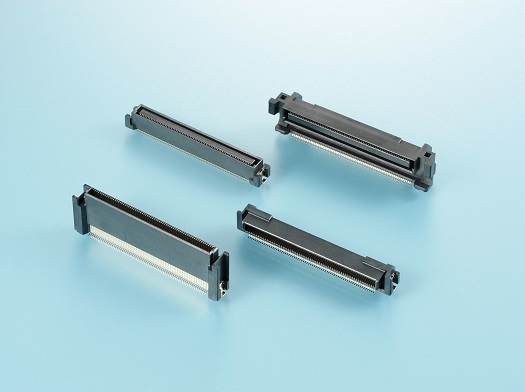

8600 Series
0.635 mm Pitch Connector

The 8600 Series is a 0.635 mm pitch board-to-board connector. It features small-size, multi pin, and high reliability, and it is the optimum product to contribute to downsizing and sophistication of equipment

Hauptmerkmale
- Reliable design with an effective mating length of 2mm
- Coplanarity: 0.1 mm max
- Connection method: Stacked/horizontal/vertical mating
- Mis-insertion prevention mechanism that also serves as a guide

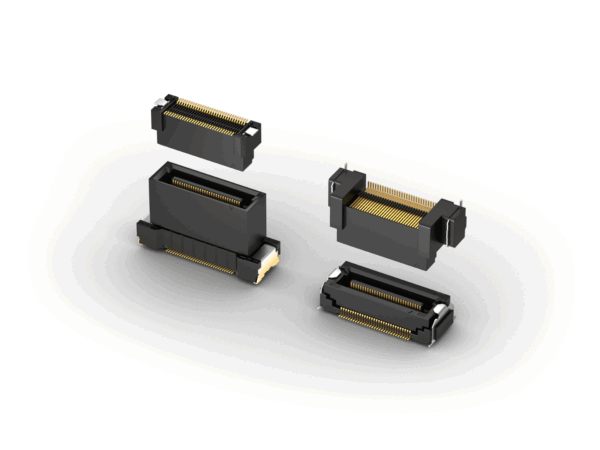

DT-E-FS Series
high speed transmission compatible 0.5mm pitch floating connector/ high stack type with power terminal (receptacle 10mm bottom raised type)

Our DT-E-FS Series board-to-floating connector with a printed circuit board printed circuit board has a 0.5mm pitch with the stack height of receptacle raised by 10mm, and is capable of high speed serial transmission equivalent to 8Gbps.

Hauptmerkmale
- Current rating of the power supply terminal is 6.0A per contact
- Floating amount: ±1.2 mm in the X and Y directions
- Enables 8 Gbps high-speed serial transmission
- Reliable design with an effective mating length of 1.5mm
DT-E Series
High-Speed Transmission compatible 0.5mm pitch floating connector / type with power terminal

Our DT-E Series support 0.5mm pitch floating connector type with power terminal. There are 4 terminals for power supply, and current rating is 6.0A per terminal.

Hauptmerkmale
- Current rating of the power supply terminal is 6.0A per contact
- Floating amount: ±0.7 mm in the X and Y directions
- Compatible with high speed serial transmission, and the transmission characteristics satisfy all the requirements of SATA Rev3.0.
- Connection method: stacked mating

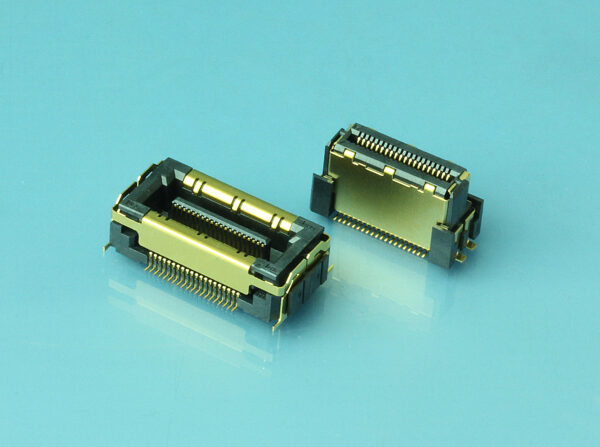

DT-S Series
High-Speed Transmission compatible 0.5mm pitch floating connector / shell type

Our DT-S Series support high-speed serial signal transmission equivalent to the SATA standard while supporting ESD/EMC countermeasures.

Hauptmerkmale
- Suitable for protection against ESD/EMC
- Compatible with high speed serial transmission, and the transmission characteristics satisfy all the requirements of SATA Rev3.0
- Connection method: stacked mating stacked mating
- Floating amount: ±0.5 mm in the X and Y directions
DT12 / 13 Series
High-Speed Transmission / High Temperature Resistance

Our DT1213 Series support high-speed serial signal transmission equivalent to the SATA standard with high temperature resistance.

Hauptmerkmale
- Suitable for protection against ESD/EMC
- Operating temperature is -40°C to 125°C.
- Effective mating length: 1.5 mm (stacked/vertical mating), 1.7 mm (horizontal mating)
- Floating amount: ±1.0 mm in the X and Y directions
DT-FS Series
Hochgeschwindigkeits-Übertragung

The DT-FS Series is a 0.5 mm pitch board-to-board floating connector with the receptacle stack height raised by 10 mm.

Hauptmerkmale
- Enables 8 Gbps high-speed serial transmission
- Arc-shaped contact prevents foreign matter from getting caught
- Reliable design with an effective mating length of1.5 mm
- Floating amount: ±1.0 mm in the X and Y directions

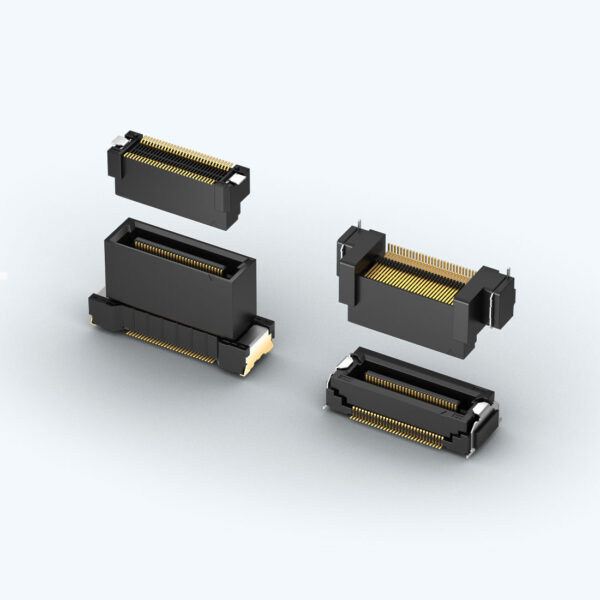

DT Series
Hochgeschwindigkeits-Übertragung

Unsere DT-Serie unterstützt eine serielle Hochgeschwindigkeits-Signalübertragung, die dem SATA-Standard entspricht, und verfügt gleichzeitig über die Funktion eines Floating-Steckverbinders mit einem Raster von 0,5 mm.

Hauptmerkmale
- Suitable for protection against ESD/EMC
- Floating amount: ±0.5 mm in the X and Y directions
- Effective mating length: 1.5 mm (stacked/vertical mating), 1.7 mm (horizontal mating)
- Floating amount: ±0.5 mm in the X and Y directions

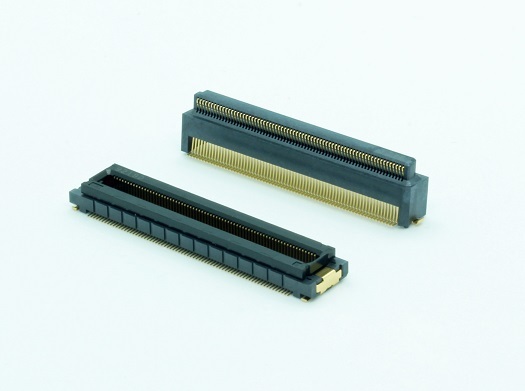

DY03 / 04 Series
Compact and Versatile / High Temperature Resistance

High temperature resistance type of our main product 0.5mm pitch printed circuit board-to-printed circuit board floating connector DY series.

Hauptmerkmale
- Operating temperature is guaranteed up to +105°C
- Floating amount: ±0.5 mm in the X and Y directions
- Reliable design with an effective mating length of 1.25mm
- Stack height: 5, 11, 12, 13, 14mm
