0.4mm Pitch Fully Shielded Connector for Micro Coaxial Cables – “ASLS EM Series”

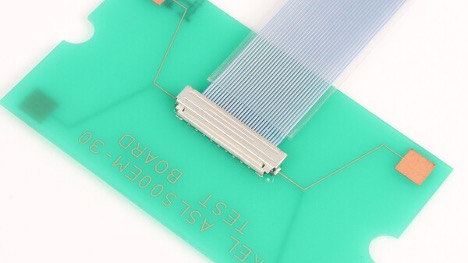

Image shown: 30-pin configuration
KEL Corporation is pleased to announce the development of the “ASLS EM Series”, a fully shielded, 0.4mm pitch connector designed for micro coaxial cables.
Product Overview
The ASLS EM Series is a compact, fully shielded connector optimized for high-speed signal transmission, ideal for applications such as commercial cameras and equipment requiring EMI resistance and minimal footprint.
- Fully Shielded Design: Shields all terminals from mating area to mounting area to enhance electromagnetic immunity and reduce intra-system EMC and radiation.
- Improved Signal Quality: Multiple grounding points and full shielding contribute to reliable, high-speed transmission.
- Locking Mechanism: Provides an audible “click” when mated and prevents accidental disconnection from cable tension.
- U-Shaped Guide: Assists in precise mating, improving workability and reducing risk of connector damage.
- Non-Magnetic Materials: Suitable for environments exposed to magnetic fields or charged particles.
- Two-Point Cable Crimping: Enhances cable retention and enables operation up to 105°C.
- Please note: This series is provided as a harness product. The cable-side connector is not sold separately.
If you are interested in electromagnetic field performance reports (near-field and far-field), please use the [Product Information Inquiry] link or contact your sales representative.
Product Specifications
- Pitch: 0.4mm
- Number of Pins: 30 (others available on request)
- Insulator Material: LCP (glass-filled, UL94V-0, black)
- Contact Material: Copper alloy
- Contact Plating: Nickel base, gold-plated contact and tail
- Metal Shell: Copper alloy with tin-silver-copper finish over copper plating
- Adhesive Tape: Polyimide
- Cover Material: LCP (glass-filled, UL94V-0, black)
- Rated Current: 0.25A per contact
- Contact Resistance: 100mΩ max.
- Dielectric Withstand Voltage: AC 200V for 1 minute
- Insulation Resistance: 100MΩ or more at DC 250V
- Durability: 100 mating cycles
- Operating Temperature: -40°C to +105°C
- Compatible Cable: AWG#42
Applications
- Imaging Equipment: Commercial cameras, drones, drone cameras, flat panel displays (FPDs)
- Automotive Equipment: In-vehicle cameras, monitors
- Communication Devices: ICT communication modules, etc.
