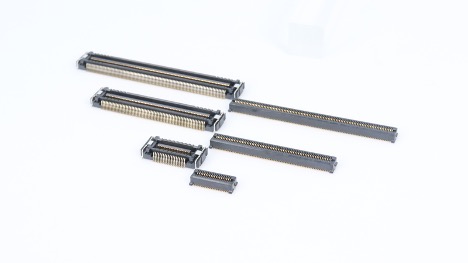

KEL Corporation is pleased to announce the expansion of its 0.4mm pitch floating connector “DUS Series” with new product variations.
Newly Added Variations
- Additional contact configurations now include 80, 100, 120, 160, and 180 pins.
- New reel packaging with 500 units per reel is now available across the DUS Series lineup.
Product Overview
- Floating Range: ±0.4mm in the X and Y directions
- Available Contact Counts: 40, 80, 100, 120, 140, 160, 180, and 200 pins
- High-Speed Transmission: Supports serial transmission up to 16Gbps (NRZ, Sdd21: -3dB @8GHz)
- Connection Structure: Stacked mating
- Stack Height: 3mm
- Operating Temperature Range: -40°C to +125°C
Product Specifications
- Insulator Material: LCP (glass-filled), UL94V-0; Color: Black
- Contact Material: Copper alloy
- Contact Plating: Gold over Nickel
- Dust Protection / Adsorption Tape: Polyimide
- Current Rating: 0.4A per contact (simultaneous conduction for fewer than 60 pins)
- Contact Resistance: 80mΩ max
- Dielectric Withstand Voltage: AC 200V for 1 minute
- Insulation Resistance: 100MΩ min (DC 250V)
- Durability: 100 mating cycles
Applications
- Imaging Equipment
- Automotive Equipment
- Communication Devices
- Medical Devices
- Industrial Equipment
- Amusement Devices
Office Equipment
