KEL Corporation has developed a new 60-pin “ASLS Series” connector for 0.4mm pitch micro-coaxial cables.
The ASLS Series, first introduced in October 2023, is expanding to meet a wider range of applications and usage environments for micro-coaxial connectors. The new 60-pin version is designed to support higher image quality and increased signal processing demands. Additional 40-pin and 50-pin versions are planned for release in September 2025.

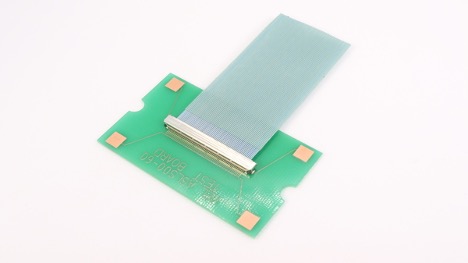

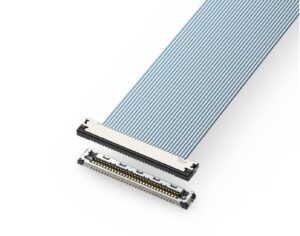

0.4mm pitch micro coaxial cable connector “ASLS Series” *Image: 60 pins
Product Overview
- Non-magnetic properties – unaffected by magnetic fields.
- High heat resistance – usable at temperatures up to 105℃.
- Secure locking structure – with an audible “click,” ensuring strong mating and improved cable retention.
- Double-crimp construction – strengthens cable pull resistance.
- Two-point pin contact – provides reliable electrical connection.
- Improved EMC performance – reinforced noise resistance with multiple ground pins.
- Mating guide structure – ensures smooth mating, prevents misalignment, incorrect insertion, and potential damage.
- Low-profile stacked design – stack height of only 1.65mm.
- Harness assembly only – plug-side connectors are not sold separately.
Product Specifications
- Insulator material: LCP (glass-filled), UL94V-0, black
- Pins: Copper alloy, nickel base plating
- Pin contact area: Gold-plated finish
- Pin tail area: Gold-plated finish
- Metal shell: Copper alloy, tin-silver-copper plating
- Adsorption tape: [ASLS00] Polyimide
- Pressure cover material: [ASLS20] LCP (glass-filled), UL94V-0, black
- Current rating: 0.25A per pin
- Pin resistance: 100 mΩ or less
- Dielectric withstand voltage: AC 200V, 1 minute
- Insulation resistance: DC 250V, 100MΩ or more
- Durability: 100 insertion/withdrawal cycles
- Operating temperature: -40°C to +105°C
- Compatible cable: AWG #42
Target Applications
- Imaging equipment
- Medical devices
- Automotive electronics
- Industrial systems
- Consumer electronics
- Office equipment
