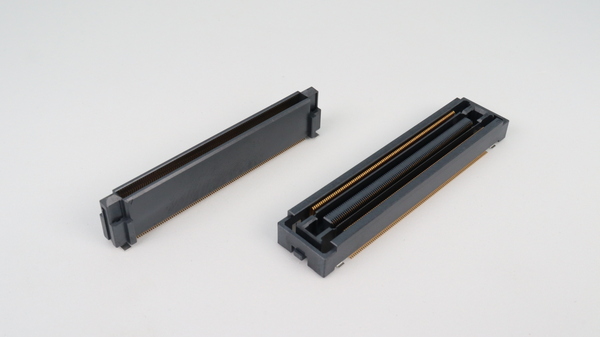

PCIe 5.0-Equivalent High-Speed Transmission Floating Connector “JI Series”
KEL Corporation (Headquarters: Tama City, Tokyo; President and Representative Director: Akira Kasuga) is developing the “JI Series,” a high-speed transmission floating connector equivalent to PCIe 5.0.
Product Overview
- Floating connector with a signal terminal pitch of 0.5 mm.
- Transmission characteristics are aimed at PCIe 5.0-equivalent signal performance.
- Signal terminals range from 20 to 200 poles.
- Option to include or exclude power terminals. (Power terminals: 4 poles)
- Each power terminal is designed to handle 6A.
- Connection type is stack connection.
- Stack height is 10 to 35 mm.
- Floating range: XY direction ±1.0 mm (10 mm to 15 mm), XY direction ±1.2 mm (20 mm to 35 mm).
- Operating temperature range: -40°C to +125°C. (Including temperature rise due to energization)
- Effective mating length: ±1 mm.
- Lead-in: ±1.5 mm.
Product Specifications
- Insulator material: LCP (glass fiber reinforced), UL94V-0, Color: Black
- Contact material: Copper alloy
- Contact plating: Nickel plating undercoat (Contact area) Gold plating finish (Tail area) Gold plating finish
- Rated current: 0.3A per terminal
- Contact resistance: 100 mΩ or less
- Withstand voltage: AC 200V, 1 minute
- Insulation resistance: DC 250V, 100 MΩ or more
- Operating temperature range: -40°C to +125°C
- Insertion/withdrawal durability: 100 cycles
Applications
- Automotive equipment market: HPC, integrated ECU, etc.
As this is a product currently under development, please note that specifications, shape, and series name are subject to change without notice.
