Announcement of the Start of Sales for the FG Series – 50A Compatible Drawer Connector

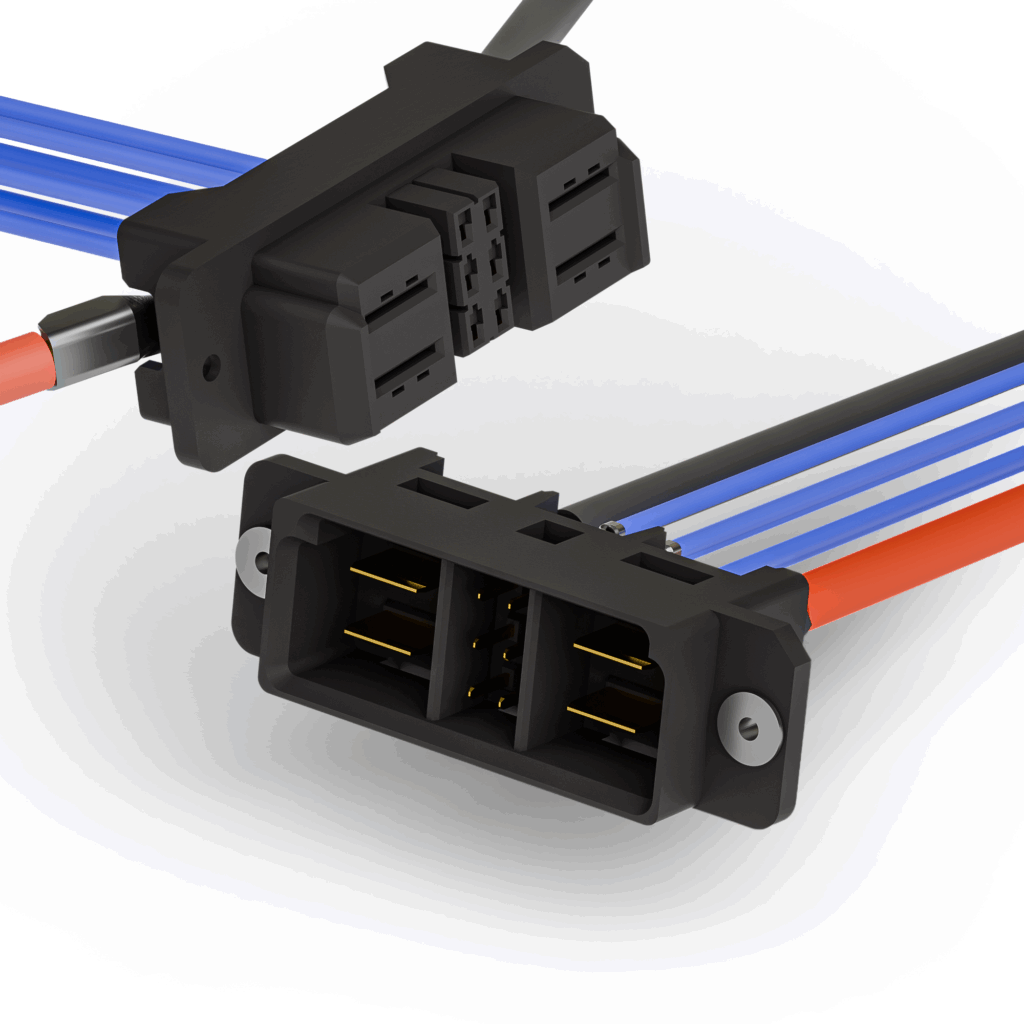

50A drawer connector. Photo: receptacle (bottom), plug (top).

KEL Corporation (Headquarters: Tama City, Tokyo; President: Akira Kasuga) is pleased to announce the start of sales for the “FG Series” 50 A drawer connector, designed for connecting batteries to the main units of equipment that handles high currents.



Product Overview

  • Each power contact handles up to 50A.
  • Combines 2-pin power terminals with 6-pin signal terminals to save space.
  • Multiple-clamping contact structure prevents contact buckling and improves reliability through stable contact force (power terminal: 8-point contact / signal terminal: 2-point contact).
  • Guide mechanism that absorbs mating misalignment of ±3.5 mm in the X direction and ±2.8 mm in the Y direction.
  • The screw-fastening section of the plug-side connector is movable, allowing adjustment of up to ±0.7 mm in the XY direction.
  • A highly reliable design with an effective mating length of 3.0 mm for the power terminal and 2.4 mm for the signal terminal supports hot swapping.



Product Specifications

FG01: Receptacle (cable-side connector)

  • Insulator material: PBT (glass-fiber reinforced), UL94V-0, black
  • Contact material: Copper alloy
  • Contact plating: Nickel plated base coat
  • Signal contacts: gold-plated (contact area), nickel-plated (crimping area)
    • Power contacts: gold-plated (contact area), gold-plated (soldering area)

FG11: Plug (cable-relay connector)

  • Insulator material: PA9T (glass-fiber reinforced), UL94V-0, black
  • Contact material: Brass
  • Contact plating: Nickel plated base coat
    • Signal contacts: gold-plated (contact area), tin-plated (tail section)
    • Power contacts: gold-plated (contact area), tin-plated (soldering area)
  • Washer / rivet material: Stainless steel



Performance

  • Current rating:
    • Signal contact: 3.0 A / 1 pin (AWG #18/20)
    • Power contact: 50 A / 1 pin (AWG #6), 40 A / 1 pin (AWG #8)
  • Contact resistance:
    • Signal contacts: 10 mΩ or less
    • Power contacts: 3 mΩ or less
  • Dielectric withstand voltage:
    • Signal contact: AC 1,000 V for 1 minute
    • Power contact: AC 2,000 V for 1 minute
  • Insulation resistance: DC 500 V, 1,000 MΩ or more
  • Insertion/removal durability: 500 cycles
  • Operating temperature: -55°C to +105°C
  • Compatible cable:
    • Signal contact: AWG #18/20 discrete cable (cable outer diameter: Φ1.8–2.8 mm)
    • Power contact: AWG #6/8



Applications

  • Industrial equipment: UPS systems, lighting equipment, agricultural machinery, construction machinery, drones, and more
