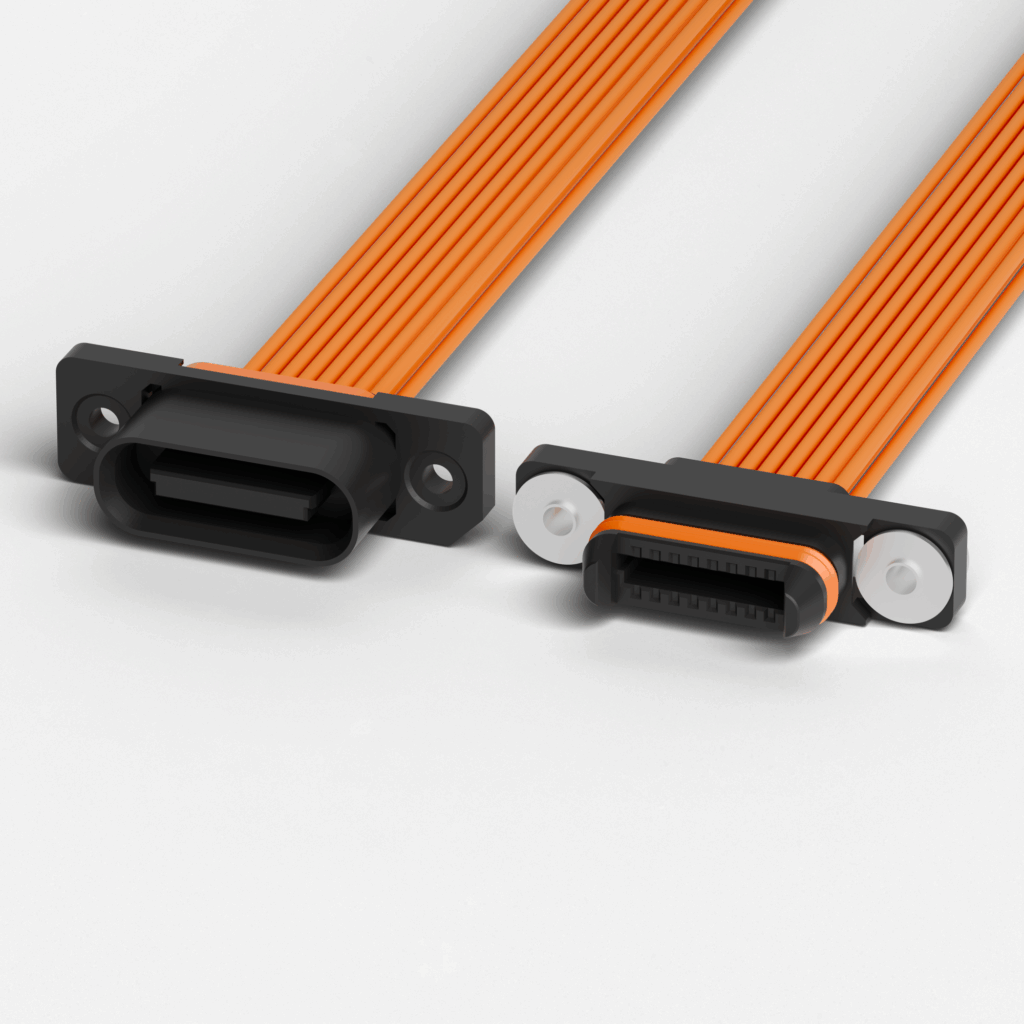

2.0mm pitch IP67 compliant waterproof drawer connector “FWSA series”
KEL Corporation (headquarters: Tama City, Tokyo; President: Akira Kasuga) has released the FWSA Series, a 2.0mm pitch, IP67-rated waterproof drawer connector with waterproof and dustproof protection, for electronic equipment exposed to rain and dust in outdoor use.
Product Overview
• Protection rating, the waterproof and dustproof performance standard for electronic equipment, is IP67.
• An IP67-rated waterproof connector suited to outdoor use, with a drawer mechanism that maintains stable connections even where misalignment during mating is likely.
• Built-in cable seal and seal ring.
• Guide mechanism absorbs mating error of ±1.5mm in the XY directions.
• Movement at the screw fastening point of the cable-side connector absorbs up to ±1.0mm in the XY directions.
• Highly reliable design with an effective mating length of 2.0mm.
• Pinching 2-point contact structure prevents contact buckling, giving stable contact force and improved reliability.
Product Specifications
• Insulator material: PBT (glass fiber filled), UL94V-0, black
• Cover material: PBT (glass fiber filled), UL94V-0, black
• Cable seal material: silicone rubber (post-cured), orange
• Seal ring material: silicone rubber (post-cured), orange
• Gasket material: silicone rubber (post-cured), orange
• Contact material: copper alloy
• Contact finish: nickel plated base coat; gold plating (contact area), tin plating (crimp area)
• Washer / rivet material: stainless steel
• Current rating: 2.5A max. per contact
• Protection rating: IP67
• Contact resistance: 20mΩ or less
• Withstanding voltage: AC 1,000V for 1 minute
• Insulation resistance: DC 500V, 1,000MΩ or more
• Durability: 50 mating cycles
• Operating temperature range: -55°C to +105°C
• Applicable cable: AWG#26 (0.12sq), cable insulation outer diameter Ø1.3 to 1.55mm, discrete cable
Applications
• Communication equipment: outdoor fan units, traffic control devices, monitoring and display units, etc.
• Imaging equipment: outdoor surveillance camera units, etc.
• Agricultural equipment and IoT: outdoor agricultural sensor devices, data collection units, etc.
