Connectors used in developing next-generation EVs, especially for infotainment, need to be compact as well as to meet high-speed transmission and durability requirements, as these requirements increase each year.
KEL produces connectors optimized for next-generation EVs, using ultimate reliability cultivated through the development of connectors for infrastructure and advanced transmission technology acquired through the development of connectors for cameras.
We have a proven track record in the automotive market with our floating connectors as well as for our micro coaxial cable connectors which are used globally.
Infotainment
As the complexity of in-vehicle systems increases with new vehicle screens and vehicle navigation systems, connectors must allow high degree of freedom in product design.
KEL’s connectors offer the industry’s smallest sizes, multiple positions, multiple mating methods, and high reliability, making new infotainment devices possible.
Automotive Devices
KEL connectors have long been applied in in-vehicle devices requiring stable performance and high durability. This is because they meet the necessary compactness and high-speed transmission performance while maintaining a high level of durability.
Standard Products
-
TSL Series
0.55 mm Pitch, 32 Gbps High-Speed Transmission Next-Generation Harness
Our TSL Series is a harness that enables 32 Gbps high-speed differential transmission at 1,000 mm length. The connector design is optimized to achieve high-speed transmission over long wires for 5G, IoT, and AI.
-
8925E Series
1.27mm pitch connector / 0.635mm pitch flat cable compatible / low profile type
The 8925E series is a 1.27mm pitch printed circuit board-to-cable connector. Compatible with AWG#30 flat cable. Achieve a low profile profile with a mating height of 11.8mm. (8925R: for products without strain relief).
See our catalog for more information on the specifications.
-

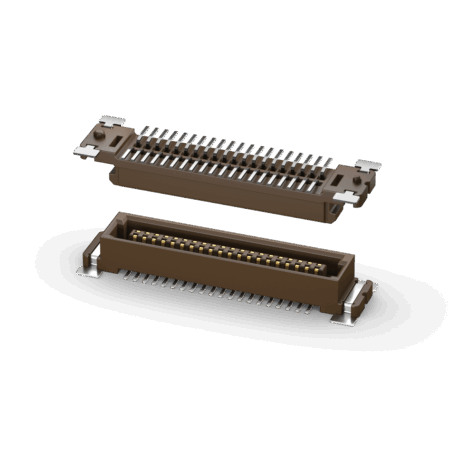

8832E-FS Series
1.27 mm pitch 2-piece connector/Flexible stack type
The 8903N-FS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector with a choice of stack heights. The height is available from 20mm to 32mm. It can be mated with the plug side of the 8900 series.
-

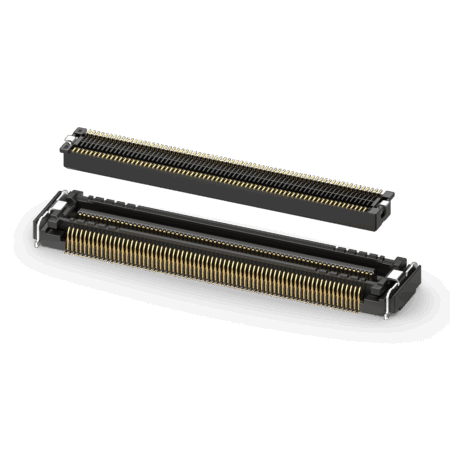

DUS Series
Industry’s Top-Class Narrow Pitch
The DUS series can move ±0.4mm in the XY directions, and can absorb deviations in equipment assembly tolerances. Available in 40, 80, 100, 120, 140 number of contacts. The terminal pins on the bottom of the receptacle are covered, preventing foreign matter from entering and enabling pattern wiring under the bottom of the contact. Effective mating length of the DUS series is 0.8 mm, ensuring reliability during mating. The stack height is 3mm.
