KEL’s connectors for micro coaxial cables, designed to be light, thin, small, and enable high-speed transmission characteristics, realize the most advanced connection technology required for imaging devices.
Surveillance and Security Cameras
Surveillance cameras are often used outdoors, so it is essential to take measures against noise and improve the product’s strength. In recent years, high-resolution images is also required to support face recognition.
KEL’s connectors for micro coaxial cables for surveillance & security cameras support high-speed transmission characteristics and have a metal shell surrounding the connector on the board side to prevent noise, improve product strength, and strengthen the ground.
Digital Cameras
High-quality and robust connectors must be used for vital parts, such as camera image sensors.
KEL’s connectors are ideal for digital cameras, with micro coaxial cables that provide high flexibility and high-speed transmission characteristics and floating connectors that contribute to lowering devices costs.
Digital Video Cameras
Digital video cameras are becoming smaller and lighter while pixel size increases each year.
KEL’s connectors, which combine miniaturization with high image quality, are used in various applications, from general-purpose models to high-end devices for broadcasters.
Standard Products
-
TMC Series
0.5 mm pitch connector for micro coaxial cables/Compatible with high-speed differential transmission/Horizontal and vertical mating type
The TMC Series is a 0.5 mm pitch connector for micro coaxial cables that supports high-speed differential transmission with a lock mechanism that enables easy mating/removal. The connection methods are horizontal and vertical mating. The compatible cables are AWG#36/38/40.
-
USL Series

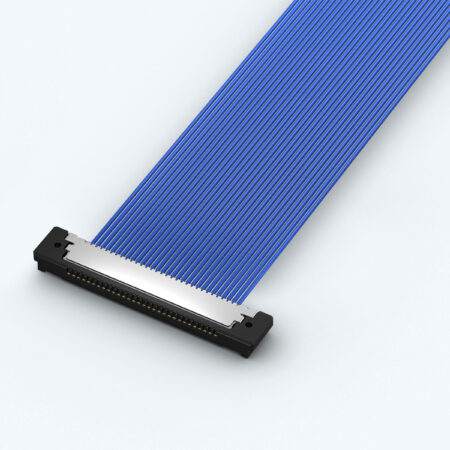

0.4 mm Pitch, Insulation-displacement connector (IDC)
The USL series is a 0.4 mm pitch connector for micro coaxial cables (AWG#42). Bulk connection by pressure welding improves the connection reliability and makes the connector compact.
-

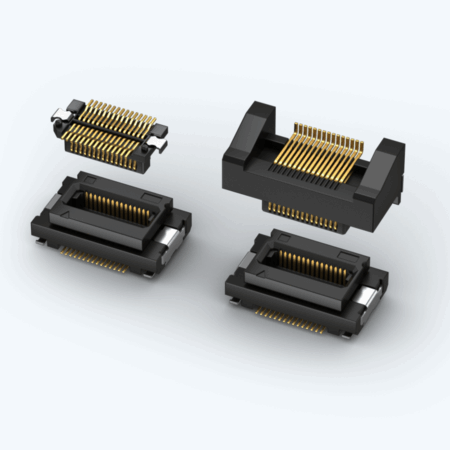

DT-FS Series
High-Speed Transmission
The DT-FS Series is a 0.5 mm pitch board-to-board floating connector with the receptacle stack height raised by 10 mm. It is capable of high-speed serial transmission equivalent to the SATA standard. When used in combination with a plug with a stack height of 20 mm, a stack height of up to 30 mm can be achieved.
-
DT-E-FS Series
high speed transmission compatible 0.5mm pitch floating connector/ high stack type with power terminal (receptacle 10mm bottom raised type)
DT-E-FS is a board-to-floating connector with a printed circuit board printed circuit board that has a 0.5mm pitch with the stack height of receptacle raised by 10mm, and is capable of high speed serial transmission equivalent to 8Gbps. By combining with a plug with a stack height of 20 mm, a maximum stack height of 30 mm is possible.
