With the installation of telemedicine and telerehabilitation via the internet, there is a need for faster communication speed and more advanced communication accuracy in the medical field.
KEL connectors and micro coaxial cables support high-speed transmission characteristics and boast the industry’s highest noise suppression and strength, contributing significantly to the miniaturization and high performance of devices.
Ultrasonography
Ultrasound systems are divided into screens (LCD), control units (main bodies), and probes. KEL produces the best connectors for all three sections.
KEL’s connectors for micro coaxial cables, which provide both high connection stability and ease of maintenance, enable the development of ultrasonography that ensure smooth operations in the field.
CT Scanners
To create a complete 3D image, the CT scanner needs to quickly transmit a large number of images from the scanner to the processing unit.
KEL’s micro coaxial cable connectors help generate 3D images at maximum speed without compromising the performance of high-speed cables with excellent transmission characteristics.
Endoscopes
KEL’s micro coaxial cable connectors are used for endoscope probes. We can flexibly customize the connector according to your specifications.
Our floating connector supports high-speed image data transmission and can withstand the high temperatures of autoclave sterilization processes.
Standard Products
-

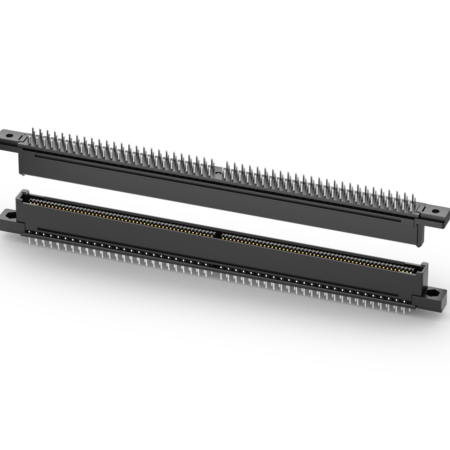

DT-E Series
High-Speed Transmission compatible 0.5mm pitch floating connector / type with power terminal
Our DT-E Series support 0.5mm pitch floating connector type with power terminal. There are 4 terminals for power supply, and current rating is 6.0A per terminal.
-

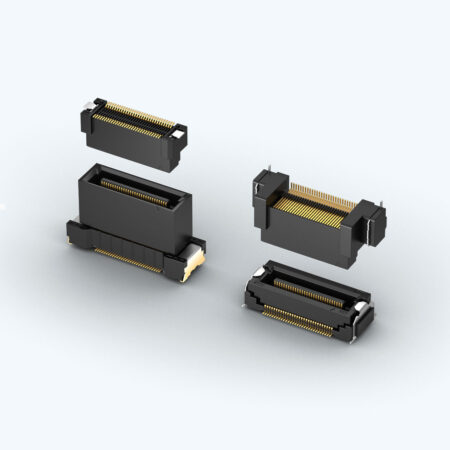

DT-FS Series
High-Speed Transmission
The DT-FS Series is a 0.5 mm pitch board-to-board floating connector with the receptacle stack height raised by 10 mm. It is capable of high-speed serial transmission equivalent to the SATA standard. When used in combination with a plug with a stack height of 20 mm, a stack height of up to 30 mm can be achieved.
-

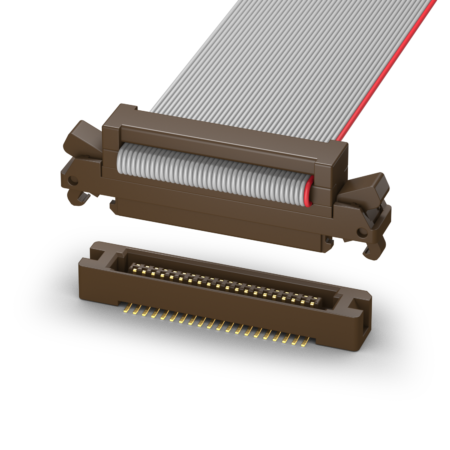

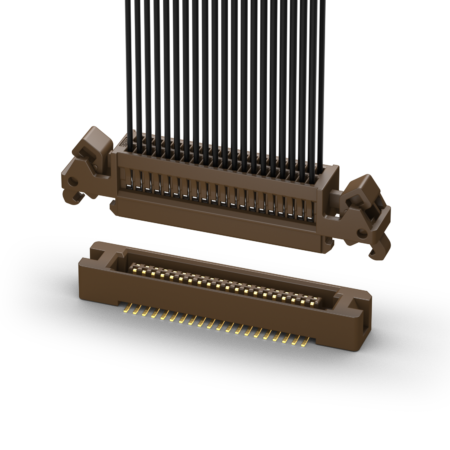

USL Series
0.4 mm Pitch, Insulation-displacement connector (IDC)
The USL series is a 0.4 mm pitch connector for micro coaxial cables (AWG#42). Bulk connection by pressure welding improves the connection reliability and makes the connector compact.
-
DUS Series
Industry’s Top-Class Narrow Pitch
The DUS series can move ±0.4mm in the XY directions, and can absorb deviations in equipment assembly tolerances. Available in 40, 80, 100, 120, 140 number of contacts. The terminal pins on the bottom of the receptacle are covered, preventing foreign matter from entering and enabling pattern wiring under the bottom of the contact. Effective mating length of the DUS series is 0.8 mm, ensuring reliability during mating. The stack height is 3mm.
