Waterproof Crimp Cable Connectors for Diverse Connection Needs
When it comes to crimp cable connectors, flexibility and reliability are everything. Fortunately, this lineup addresses both with a range of pitches and configurations designed to simplify wiring across demanding applications.

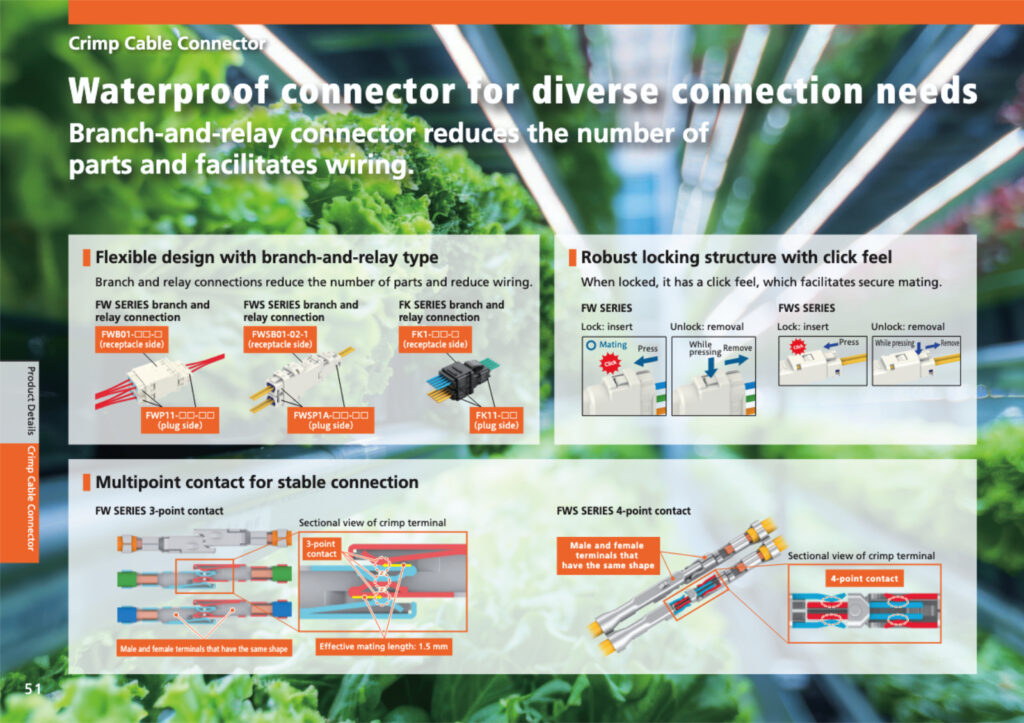

Branch-and-Relay Design
One of the standout features across the family is the branch-and-relay design. By allowing a single connector to split or continue a connection, this approach reduces the total number of parts needed in an assembly. As a result, wiring complexity goes down and installations become cleaner and easier to manage. For applications where space and efficiency matter, this can make a meaningful difference in both design time and production cost.
Waterproofing and Secure Mating
In addition to their branching capability, the FW Series (5.0mm pitch) and FWS Series (2.0mm pitch) carry an IP67 rating, protecting against dust and temporary immersion. Both also feature a locking mechanism with a tactile click feel, giving assemblers confidence that the connection is fully seated.
A Range of Pitches for Every Application
Beyond the waterproof options, the FK Series (2.1mm pitch) extends branch-and-relay capability into a more compact form. Meanwhile, the FJC Series (0.75mm pitch) brings the lineup down to a fine-pitch SMT-mountable option, supporting up to 30 contacts for high-density applications. Across all series, male and female terminals share the same shape, enabling consistent multipoint contact and stable connections throughout the assembly.
Series Specifications
FW Series — 5.0mm Pitch Crimp Cable Connector, IP67 Waterproof
- Connection: CtoC
- Number of contacts: 2/3/4
- Applicable cable: AWG 16/18/20/22
- Termination: Crimping
- Effective mating length: 1.5mm
- IP67 rated
- Mating method: Cable branch and relay
FWS Series — 2.0mm Pitch Crimp Cable Connector, IP67 Waterproof
- Connection: CtoC
- Number of contacts: 2/3/4/6/8
- Applicable cable: AWG 22/24/26/28
- Termination: Crimping
- Effective mating length: 0.8mm
- IP67 rated
- Mating method: Cable branch and relay
FK Series — 2.1mm Pitch Crimp Cable Connector, Branching and Relay Type
- Connection: CtoC
- Number of contacts: 5/7
- Applicable cable: AWG 22/24/26/28
- Termination: Crimping
- Effective mating length: 0.7mm
- Mating method: Cable branch and relay
FJC Series — 0.75mm Pitch Crimp Cable Connector
- Connection: BtoC
- Number of contacts: 30
- Mounting method: SMT
- Applicable cable: AWG 28/30
- Termination: Crimping
- Effective mating length: 0.576mm
- Mating method: Cable horizontal
