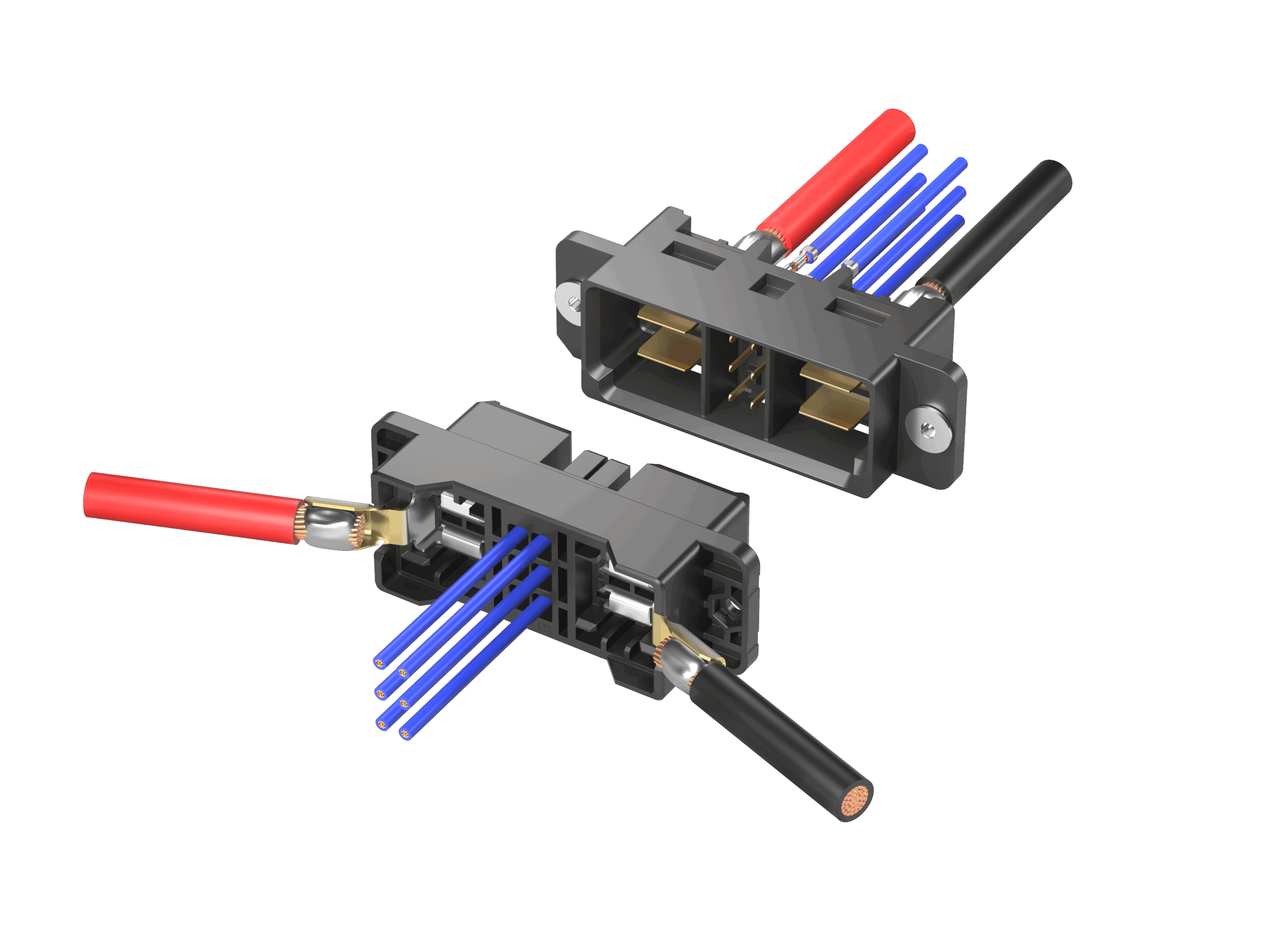

The FG Series 50A High-Current Battery Connector is a high-reliability drawer connector engineered for demanding energy storage and power distribution systems. It integrates high-power capacity and signal transmission into a compact design optimized for blind-mating applications. Provided as a complete harness; Connectors not sold separately. Please contact our sales representative regarding the cables and harnesses to be used.
| Insulator Material | [FG01] PBT (glass-filled reinforced) UL94V-0 material, color: black [FG11] PA9T (glass-filled reinforced) UL94V-0 material, color: black |
| Signal/Power Contact Material | [FG01] Copper alloy [FG11] Brass |
| Signal Contact Plating | [FG01] Nickel plating base (Contact area) gold-plated finish (Crimped section) nickel-plated finish [FG11] Nickel plating undercoat (Contact area) gold-plated finish (Tail section) tin-plated finish |
| Power Contact Plating | [FG01] Nickel plating base (Contact area) gold-plated finish (Soldering parts) gold-plated finish [FG11] Nickel plating undercoat (Contact area) gold-plated finish (Soldering parts) tin-plated finish |
| Washer / Rivet Material | Stainless steel |
| Rated Current | Signal contacts: 3A per contact (AWG#18/20) Power contacts: 50A per contact (AWG#6), 40A per contact (AWG#8) |
| Contact Resistance | Signal contact: 10 mΩ or less Power contact: 3 mΩ or less |
| Dielectric Withstand Voltage | Signal contact: AC 1,000V, 1 minute Power contact: AC 2,000V, 1 minute |
| Insulation Resistance | DC 500V, 1,000 MΩ or more |
| Operating Temperature Range | -55°C to +105°C |
| Insertion/Removal Durability | 500 times |
| Compatible Cables | Signal contacts: AWG#18/20 (Cable outer diameter of cable coating: φ1.8~2.8mm) discrete cable Power contacts: AWG#6/8 |
Scroll horizontally to view all table content.
| Part number | No. of contacts | Connection type | Current rating | Type | RoHS | Recommended Cable | Other features | 3D-CAD (IGS) | 3D-CAD (STEP) |
|---|---|---|---|---|---|---|---|---|---|
| FG01-06 | 6 | Drawer | Power: 50A / Signal: 3A | receptacle (cable side connector) | Compliant | Power: AWG#6/8, Signal: AWG#18/20 | 50A Drawer Connector; Hybrid 2-power/6-signal; 8-point power/2-point signal contact; hot swap support | Download | Download |
| FG11-06 | 6 | Drawer | Power: 50A / Signal: 3A | plug (cable-relay type) | Compliant | Power: AWG#6/8, Signal: AWG#18/20 | 50A Drawer Connector; Hybrid 2-power/6-signal; floating screw-mount (+/-0.7mm XY tolerance); hot swap support | Download | Download |
