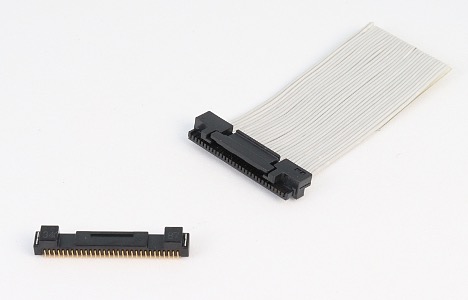

Sales Launch: 0.75mm Pitch Crimp Cable Connector "FJC Series"

Sales Start Date:
Monday, April 1, 2024

Product Overview

Features a central locking mechanism that ensures secure mating with a stable electrical connection and an audible “click.”
Designed with a finger-press area for smooth insertion, improving workability during assembly.
Utilizes a twin-leaf, 2-point contact structure to prevent contact deformation and maintain reliable, stable contact force.
Standard configuration includes 30 contacts.
Please contact our sales representatives for different contact variations.
PCB-side connector features a right-angle design.
Low-profile form factor with a mated height of just 4.2mm.

Product Specifications

Insulator Material:
- FJC01: PBT (glass-filled), UL94V-0, black
- FJC11: Nylon 9T (glass-filled), UL94V-0, black
Contact Material: Copper alloy
Contact Plating:
- FJC01:
  - Base: Nickel
  - Contact area: Gold-plated
  - Crimp area: Gold-plated
- FJC11:
  - Base: Nickel
  - Contact area: Gold-plated
  - Tail area: Gold-plated
Retention Clip Material: Copper alloy
Retention Clip Plating: Tin over Nickel
Electrical & Mechanical Performance:
- Rated Current: 1.0A per contact
- Contact Resistance: 50mΩ or less
- Dielectric Withstand Voltage: AC 200V, 1 minute
- Insulation Resistance: 100MΩ or more at DC 250V
- Insertion/Extraction Durability: 100 cycles
- Operating Temperature Range: -40°C to +85°C
- Applicable Cable: AWG#28/30, sheath outer diameter φ0.5–0.6 mm (discrete cable)

Target Applications
