Sales Start Date:
Monday, April 1, 2024
The FAS Series is a high-reliability drawer connector ideal for unit-to-unit connections. It supports both PCB-to-cable and cable-to-cable configurations. Designed to prevent pin deformation, ease alignment during mating, and reduce mechanical stress, the series offers enhanced connection reliability and ease of use.

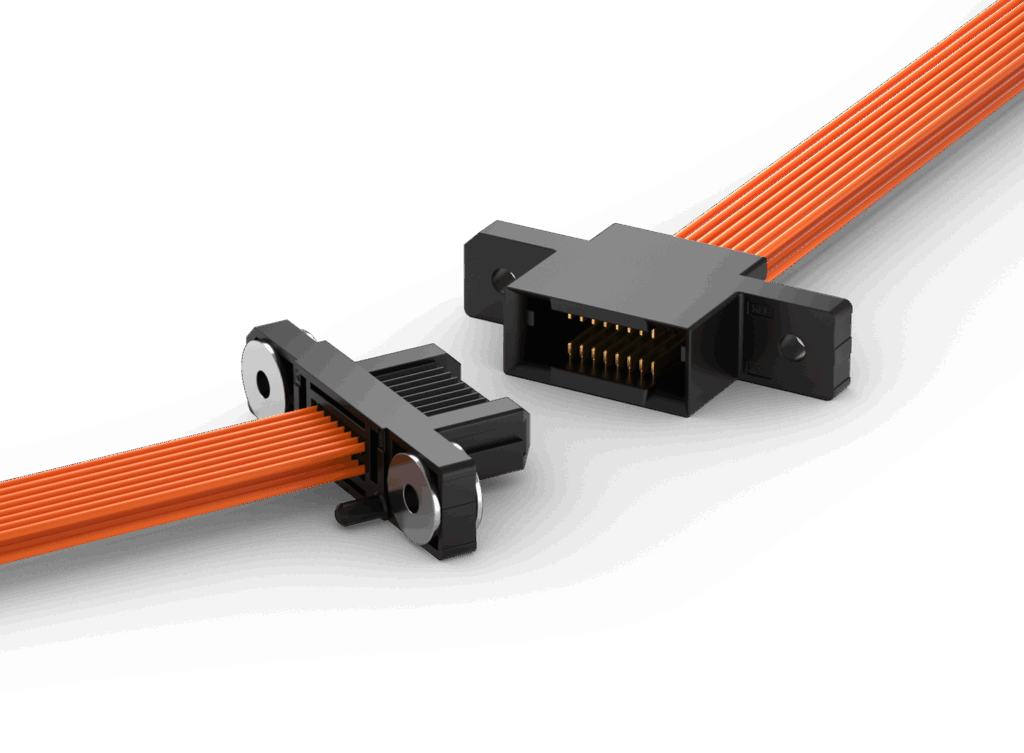

Product Photo:
Left – Plug (PCB-side right-angle type)
Right – Receptacle (cable-side drawer type)
Product Overview
- Compatible with cable-side connector model: FAS01-□□□
- Equipped with a guide mechanism that absorbs ±3mm of misalignment in the X and Y directions.
- Cable-side connectors feature a movable screw to absorb additional ±1.4mm of displacement in the XY direction.
- Available in eight contact configurations: 4, 16, 22, 26, 28, 30, 32, and 40 pins.
- The twin-leaf, 2-point contact design ensures secure electrical contact and prevents contact buckling.
Product Specifications
- Insulator Material: PBT (glass-filled), UL94V-0, black
- Contact Material: Brass
- Plating:
- Base: Nickel
- Contact Area: Gold-plated
- Tail Area: Gold-plated
- Electrical Performance:
- Rated Current:
- AWG24: Up to 2.5A per contact (3.0A max for ≤20 pins)
- AWG26/28: Up to 2.0A per contact (3.0A max for ≤10 pins)
- Contact Resistance: 30mΩ or less
- Dielectric Withstand Voltage: AC 650V, 1 minute
- Insulation Resistance: 1,000MΩ or more at DC 500V
- Rated Current:
- Durability:
- 2,000 mating cycles (with #597-□)
- 5,000 mating cycles (with #597D-□)
- Operating Temperature Range: -40°C to +85°C
- Applicable Cable: AWG#24/26/28 (sheath outer diameter φ0.88–1.14mm)
Target Applications
- Amusement Equipment
- Industrial Devices
- Electronic Systems
- Office Equipment
