A drawer connector is used in areas where frequent fitting is required in hard-to-reach or non-visible locations, such as deep within a housing.

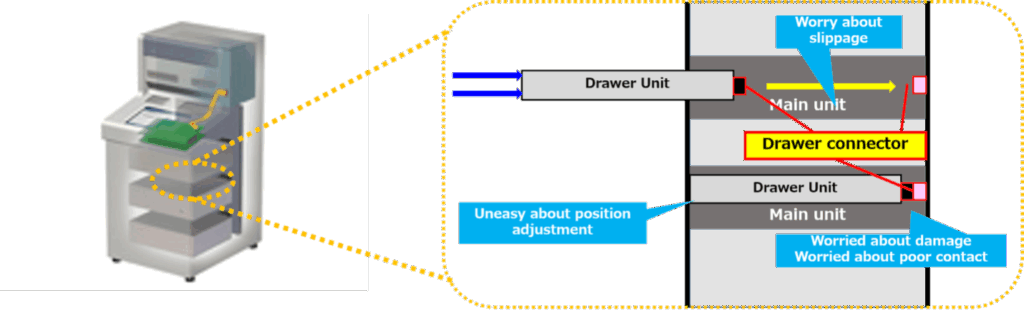

Example: Connection between the banknote/coin unit and the main unit of an ATM.
Features of Drawer Connectors
- High Contact Reliability

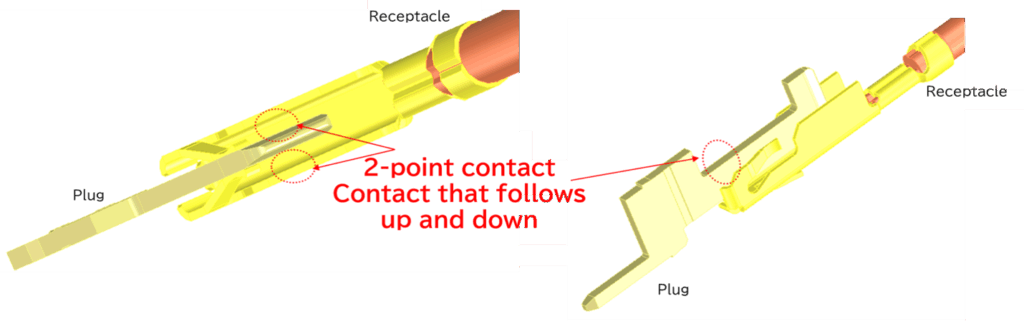

Two-point contact design ensures stable contact force.
Gold-plated contacts provide low insertion/extraction force and excellent durability.
- Prevents Pin Buckling
The plate-shaped contact structure prevents direct stress on the pin, even during angled or misaligned mating.
- Easy Mating Alignment
A smooth guiding mechanism with a wide entry angle simplifies mating alignment.
- Shock Absorption After Mating
A floating mechanism helps absorb impact and reduce stress, even after mating is complete.
Typical Applications
Drawer connectors are used in a variety of electronic devices:
