    XSL Series

    0.25 mm pitch connector for micro coaxial cables/Horizontal mating type

    The XSL Series is a 0.25 mm pitch compact connector for micro coaxial cables. It is the industry’s smallest connector, and it saves space in the occupied area on board. The compatible cables are AWG#44/46.

    Key Features

    • Compact connector with a mounting height of 1.0 mm and a mating width of 6 mm
    • The cable assembly uses a one-shot soldering method with signal line pulse heat, achieving a stable and highly reliable connection
    • A metal shell is used to reduce noise and ensure product strength
    • Multiple ground terminals are provided to improve the transmission and the EMS characteristics
    • An effective mating length of 0.51 mm is secured
    • Number of contacts: 48
  • XSLS Series 0.25 mm pitch micro-coaxial connector pair with a green ribbon coaxial harness

    XSLS Series

    0.25 mm Pitch, Stack Mating, Ultra-Compact

    Our XSLS Series is the industry’s most miniature connector with a 0.25 mm pitch and stack mating, which saves more space on the board.

    Key Features

    • Can absorb a mating error of ±3 mm in the X and Y directions
    • Reliable design with an effective mating length of 3 mm
    • Crimp contacts employ a twin-leaf pinching two-point contact structure
    • FA12 connectors for relaying cables support hot swap
  • 8800 Series 1.27 mm pitch board-to-board connector plug and receptacle with through-hole pins

    8800 Series

    1.27 mm pitch connector

    The 8800 Series is a 1.27 mm pitch board-to-board connector. It is available in straight and right-angle types, with or without fixing clips, and also with power contacts.

    Key Features

    • Completely independent two-point contact maintains stable contact at all times
    • Surface contact achieves a low insertion and withdrawal force, contributing to better contact durability
    • Plug and receptacle have same contact shapes, enabling significant cost reduction through shared use of molds and reduced material costs
    • Connection method: Stacked/horizontal/vertical mating
  • 8806 / 8807 Series high-contact-count board-to-board connector, plug and receptacle

    8806 / 8807 Series

    1.27mm pitch connector/ multi pin type

    The 8806/8807 series is a multi pin type 1.27mm pitch printed circuit board-to-printed circuit board connector offering straight/right angle configuration.

    Key Features

    • Completely independent two-point contact maintains stable contact at all times
    • Surface contact achieves a low insertion and withdrawal force, contributing to better contact durability
    • Smooth mating is possible with the guide mechanism
    • Connection method: Stacked/horizontal/vertical mating
  • 8822E / 8822 Series connector with grey ribbon cable and latching ejectors, above its board-mounted receptacle

    8822E / 8822 series

    1.27mm pitch connector / 1.27mm pitch flat cable compatible

    The 8822E/8822 series are 1.27mm pitch printed circuit board-to-cable connectors. Compatible with AWG#28 flat cable.

    Key Features

    • Completely independent two-point contact maintains stable contact at all times
    • Surface contact achieves a low insertion and withdrawal force, contributing to better contact durability
    • Eject-lock system that allows one-one-handed insertion and release and detachment and a one-touch lock that is easy to operate are available
    • Number of number of contacts: 20, 26, 30, 32, 34, 36, 40, 50, 52, 60, 68, 80, 100
  • 8825E Series connector with grey ribbon cable and latching ejectors, above its board-mounted receptacle

    8825E Series

    1.27mm pitch connector / 0.635mm pitch flat cable compatible

    The 8825E series is a 1.27mm pitch printed circuit board-to-cable connector. Compatible with AWG#30 flat cable.

    Key Features

    • Completely independent two-point contact maintains stable contact at all times
    • Surface contact achieves a low insertion and withdrawal force, contributing to better contact durability
    • Employs an eject-lock system that allows one-one-handed insertion and release and detachment
    • Daisy chain connection is possible with a 0.635 mm pitch flat cable
  • 8832E-FS Series board-to-board connector, plug and receptacle

    8832E-FS Series

    1.27 mm pitch 2-piece connector/Flexible stack type

    The 8903N-FS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector with a choice of stack heights. It can be mated with the plug side of the 8900 series.

    Key Features

    • Insulator structure that protects from three directions prevents contact deformation
    • Surface contact enables low insertion/removal force and the highly reliable design secures contact force and trailing capability
    • Reliable mating is possible with a audible “click”
    • Mating partner can be selected from the 8913/8930E/8931E series
  • 8900 Series board-to-board connector, plug and receptacle

    8900 Series

    1.27 mm pitch connector/Low-profile type

    The 8900 Series is a 1.27 mm pitch, low-profile, board-to-board connector. The straight type has five variations of height ranging from 7 mm to 12 mm. It is also available with or without a metal hook.

    Key Features

    • Insulator structure that protects from three directions prevents contact deformation
    • Surface contact enables low insertion/removal force and the highly reliable design secures contact force and trailing capability
    • Reliable mating is possible with a audible “click”
    • Available in two types, with and without flanges

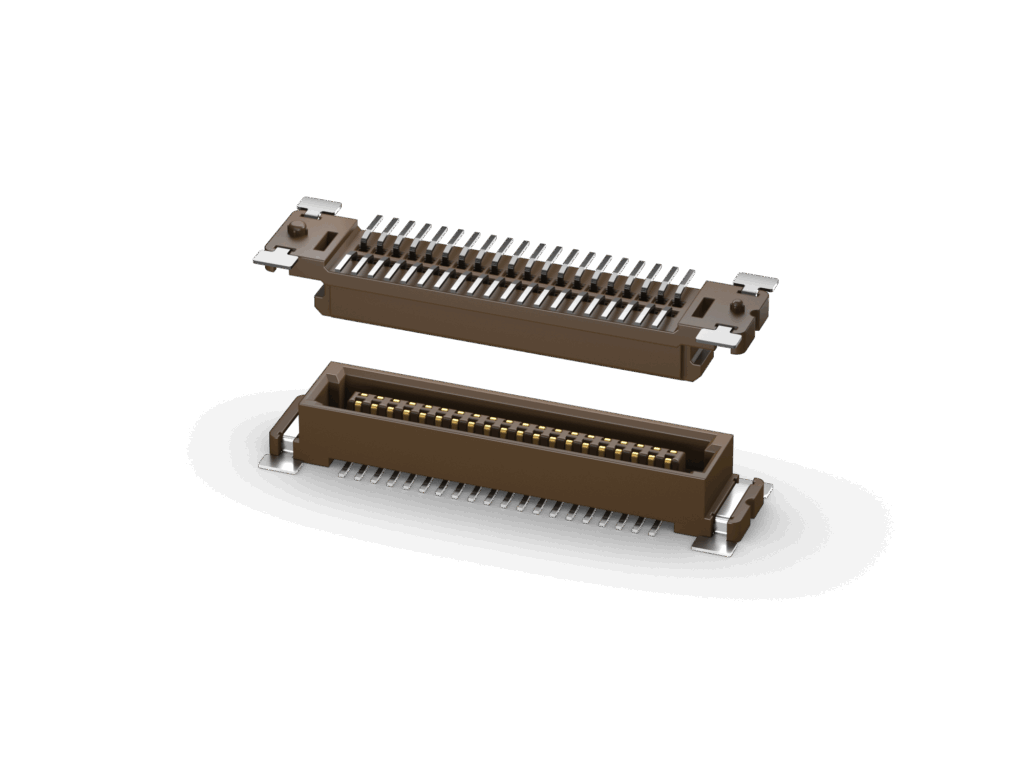

  • 8900MS Series board-to-board connector, plug and receptacle

    8900MS Series

    1.27 mm pitch connector/Low-profile type

    The 8900MS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector for low profile profile SMT. It can also be mated with the DIP type of the 8900 series.

    Key Features

    • Insulator structure that protects from three directions prevents contact deformation
    • Surface contact enables low insertion/removal force and the highly reliable design secures contact force and trailing capability
    • PPS is used for the insulator material to ensure heat resistance
    • Equipped with a retention clip to reduce stress on the lead

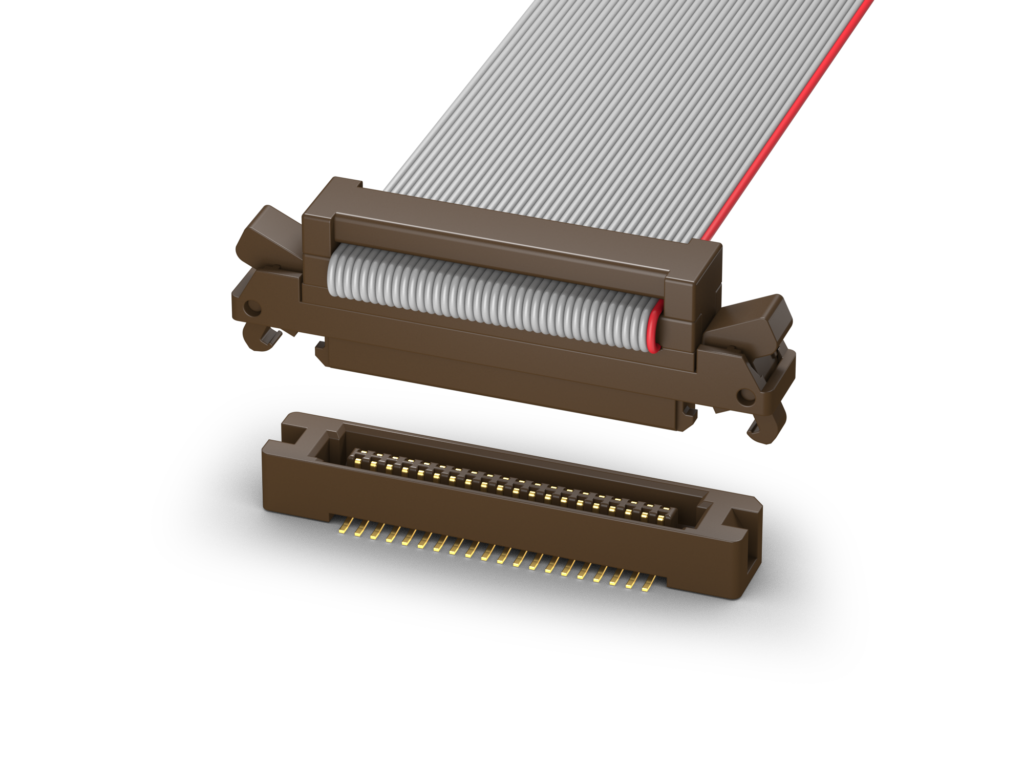

  • 8925E Series connector with grey ribbon cable and latching ejectors, above its board-mounted receptacle

    8925E Series

    1.27mm pitch connector / 0.635mm pitch flat cable compatible / low profile type

    The 8925E series is a 1.27mm pitch printed circuit board-to-cable connector.

    Key Features

    • Cable side connector (receptacle) can be mated with the 8913 series. (8925: for non-locking type)
    • Insulator structure that protects from three directions prevents contact deformation
    • Employs an eject-lock system that allows one-one-handed insertion and release and detachment. Non-locking type can also be selected
    • Daisy chain connection is possible with a 0.635 mm pitch flat cable

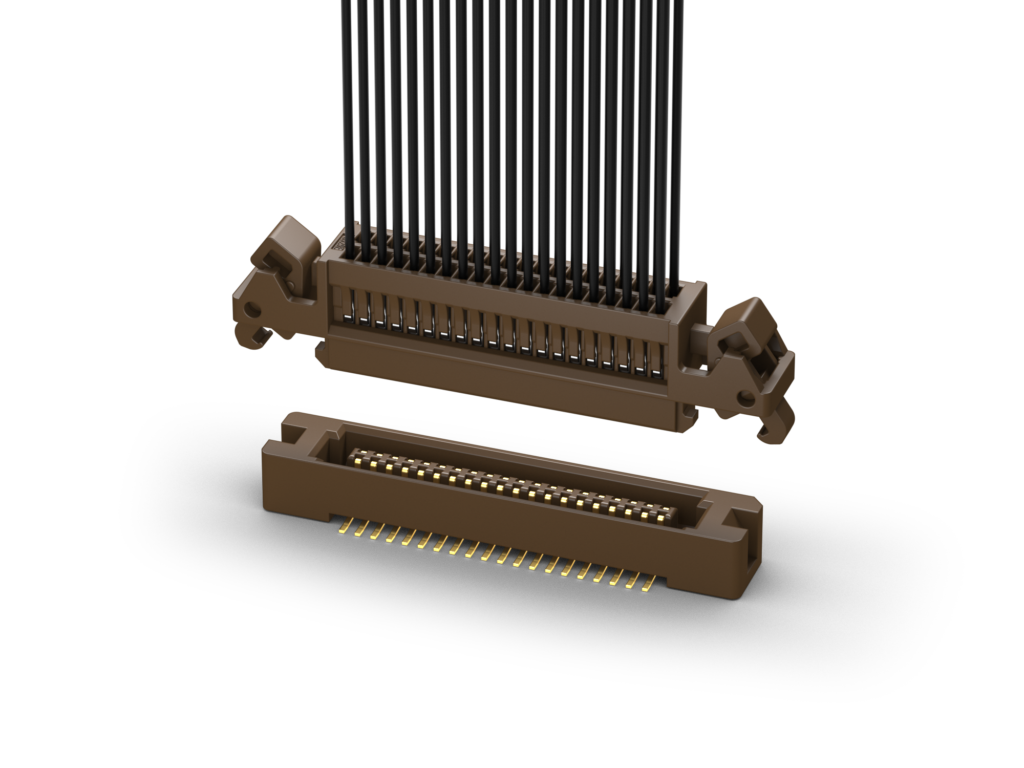

  • 8929E Series connector with discrete black wires and latching ejectors, above its board-mounted receptacle

    8929E Series

    1.27 mm pitch, connector for discrete cables

    The 8929E series is a 1.27mm pitch crimp connector for discrete cables offering a more cost effective and higher current capacity than flat cable.

    Key Features

    • Low insertion/removal force due to surface contact and secures the contact force and followability of the contact
    • Insulator structure that protects from three directions prevents contact deformation
    • Employs an eject-lock system that allows one-one-handed insertion and release and detachment
    • printed circuit board side connector uses the printed circuit board side connector 8930E/8931E that mates with the 8925E, and can be combination with a board to board connectors
