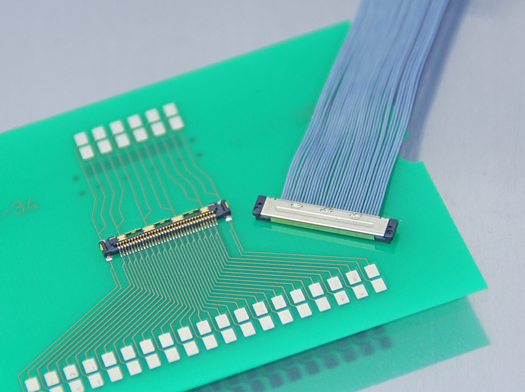

USLS21 Series
Low Profile Stack Mating Type
0.4 mm pitch connector for micro coaxial cables (connection by soldering)/Stacked mating type.
Key Features
Compact Connector with 1.65 mm Stack Height
- It has an effective mating length of 0.35 mm, a low profile of 1.65 mm stack height, and a 3.05 mm mating width. Applicable for high-density printed circuit boards.
- The cable harness can be passed through thin tube of 4mm diameter.
- Lead-free product
Improved Product Strength, Transmission Characteristics, Noise Reduction
- The board-side connector is surrounded by a metal shell to improve noise reduction, product strength, and to strengthen grounding.
- Ground terminals are provided at multiple points to improve transmission and EMS characteristics.
- A nickel barrier is placed on the board-side contact to prevent the solder from lifting.
Specifications
Material & Surface Treatment
| Insulator materials | Glass-filled LCP (UL94V-0), Black |
| Contact material | Copper alloy |
| Contact finish | Gold over Nickel |
| Metal shell material | [USLS00] Copper alloy [USLS21] Stainless steel |
| Metal shell finish | Gold over Nickel |
| Adsorption tape material | [USLS00] Polyimide |
Ratings
| Current rating | 0.25 A per contact |
| Contact resistance | 100 mΩ max. |
| Dielectric withstand voltage | 200 V AC for 1 minute |
| Insulation resistance | 100 MΩ min. at 250 V DC |
| Operating temperature | -40°C ~ +85°C |
| Compatible cables | AWG#40/42/44/46 (completion outer diameter: φ0.39 mm max.) Micro coaxial cable |
Product List & Technical Data
Scroll horizontally to view all table content.
| Part number | No. of contacts | Current rating | Pitch | Type | No. of packaging | RoHS | Recommended Cable | Other features | Product drawing | Specification | 3D-CAD (IGS) | 3D-CAD (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

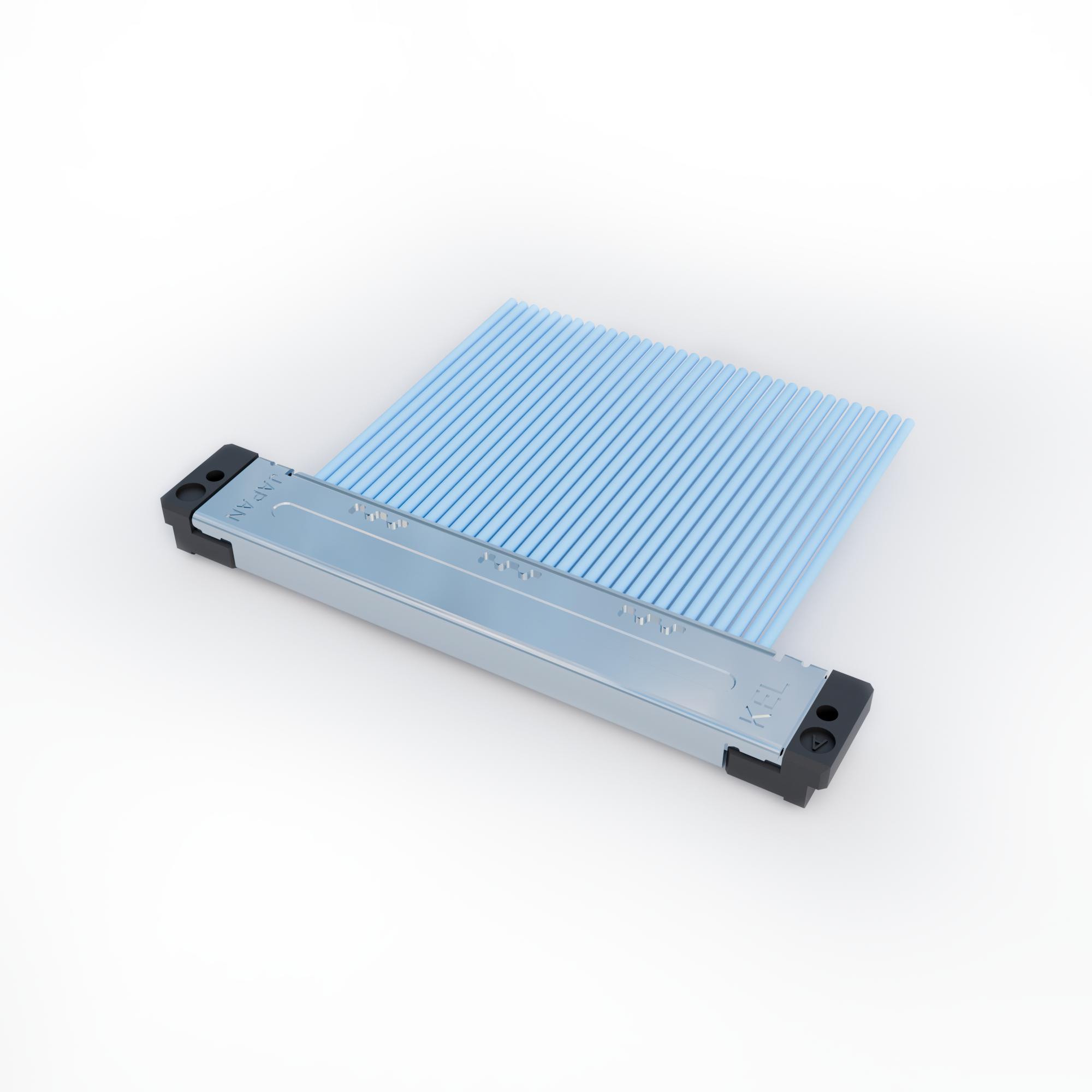

| USLS21-34 | 34 | 0.25 A | 0.4mm | plug (cable side connector) | Compliant | AWG#40/42/44/46 | View | View | Download | Download | ||
| USLS00-34-A | 34 | 0.25 A | 0.4mm | receptacle (PCB side connector) | 500 | Compliant | AWG#40/42/44/47 | View | View | Download | Download | |
| USLS00-34-B | 34 | 0.25 A | 0.4mm | receptacle (PCB side connector) | 1000 | Compliant | AWG#40/42/44/48 | View | View | Download | Download | |
| USLS00-34-C | 34 | 0.25 A | 0.4mm | receptacle (PCB side connector) | 3000 | Compliant | AWG#40/42/44/49 | View | View | Download | Download |
