FAS Series

1.5 mm pitch drawer connector

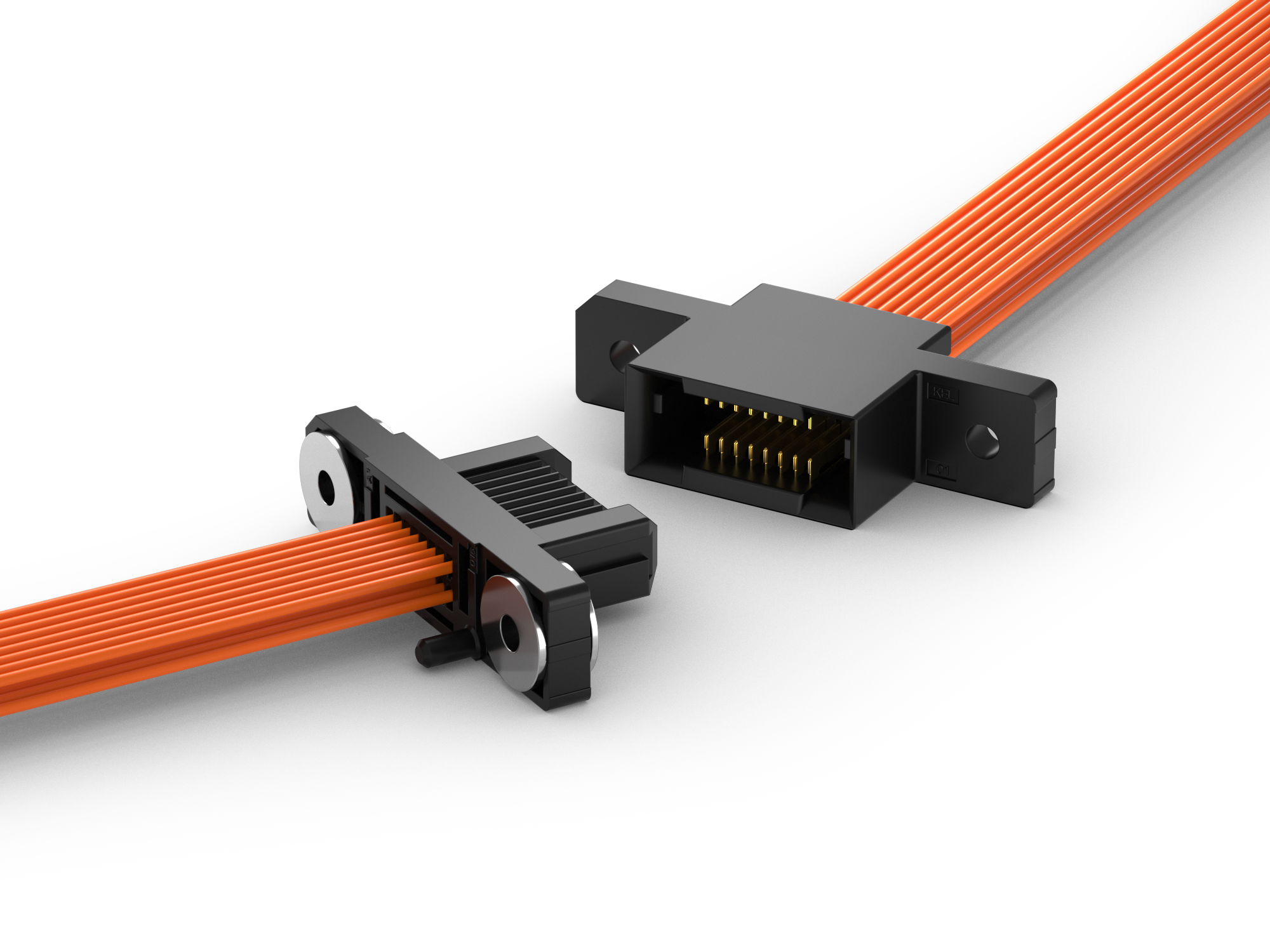

“FAS series” is a 1.5mm pitch drawer connector.
Like the FA series, this product meets the requirements for drawer connectors: prevention of pin buckling, ease of mating adjustment, stress reduction during mating, and high connection reliability.

A sufficient floating mechanism (maximum ±1.4mm in XY directions) is provided to reduce stress after mating. In addition, in order to take advantage of this, the amount of induction is increased to ±3mm in the XY direction. Furthermore, we have created a structure in which the contacts do not come into contact when being guided, but only come into contact after the connectors are straight, which buckling prevention.
The contact concept uses a two-point contact with a contact sandwich, which has a proven track record in our GF series battery connectors.
Highly reliable connection has been achieved by setting effective mating length to 3.4mm.

The cable is a cable crimp type that is compatible with AWG #24 to 28 discrete cables. With a wide variety number of contacts ranging from a minimum of 4 to a maximum of 40 pins, this product can meet a wide range of needs.
The standard product has a mating/unmating durability of 2,000 times, and multiple mating/unmating types are also available, so please contact us for details. (When mating FAS01/FAS12: 7,000 times. When mating FAS01/FAS11: 5,000 times.)
The FAS series is smaller than the FA series from a 2.5mm pitch to a 1.5mm pitch, and one of its major features is that it saves more than 30% of the printed circuit board space it occupies.

We also have a system that can meet the demands of workers in terms of workability and usability, such as products that support hot swap and removal, and cables that can be connected using common crimping jigs.
